DMR UV Dual Band Repeater

BF-TR925D

BF-TR925D portable dual band repeater is specially designed for the rapid deployment of emergency response which could be vehicle mount- ed and man packed with military standard, sturdy, and durable quality. It could work with the BF-TR900 digital repeater and BF-TR925 portable repeater, as well as networking independently, to realize a hierarchical network, hierarchical command, and extend communication distance. What’s more, different frequencies of various departments could get in the same network, enabling organizations to efficiently organize and share their resources during response operations, all in one communication network to realize wide cooperation.
Brochure
Inquiry
Features & Benefits
Specification
Accessories
Multi Working Mode, Highly Integrated
Multi Working Mode, Highly Integrated
DMR single frequency repeater (12.5KHz bandwidth, for UV both)
DMR/Analog UV cross band repeater
DMR base radio (DMR Tier I, II)
Analog base radio (for UV both)
Versatile Connectivity for Challenging Situations
Versatile Connectivity for Challenging Situations
- 4G wireless communications link
- Satellite communication link
- Narrowband communication link
- IP connectivity for multi-sites connection
Dual Band Interoperability for Instant Communications
Dual Band Interoperability for Instant Communications
The device is valuable, since it performs across multiple digital and analog networks and operates in both VHF and UHF for instant interoperability. Now you can efficiently manage mission critical voice and data in any environment and significantly improve your team’s safety and response time.
ID Authentication for Air Interface
ID Authentication for Air Interface
Only ID-authenticated legitimate terminals can activate repeaters for voice and data service forwarding, thus avoiding illegal users from stealing and occupying channel resources and affecting normal communications.

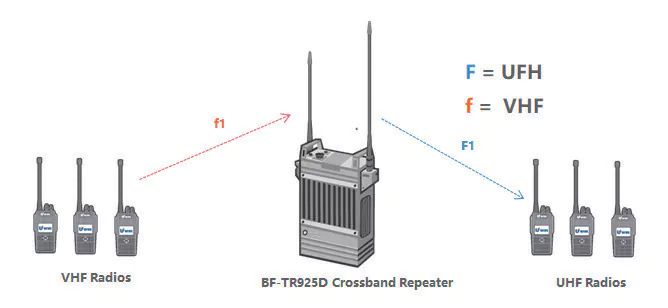

BF-TR925D connects different frequency radios

Different frequency radios connect via crossband repeater

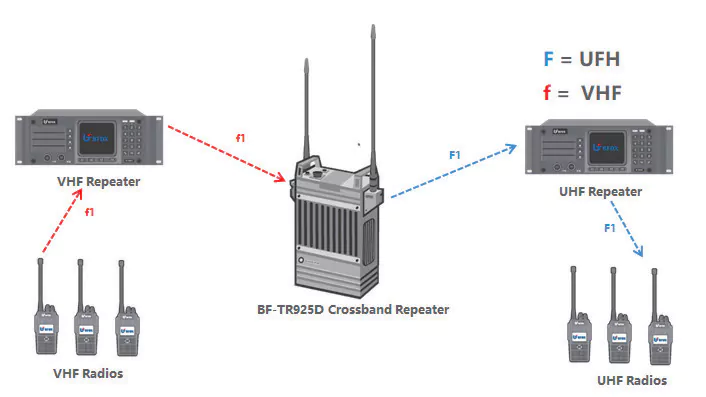

BF-TR925D connects different frequency repeaters

Different frequency repeaters connect via crossband repeater

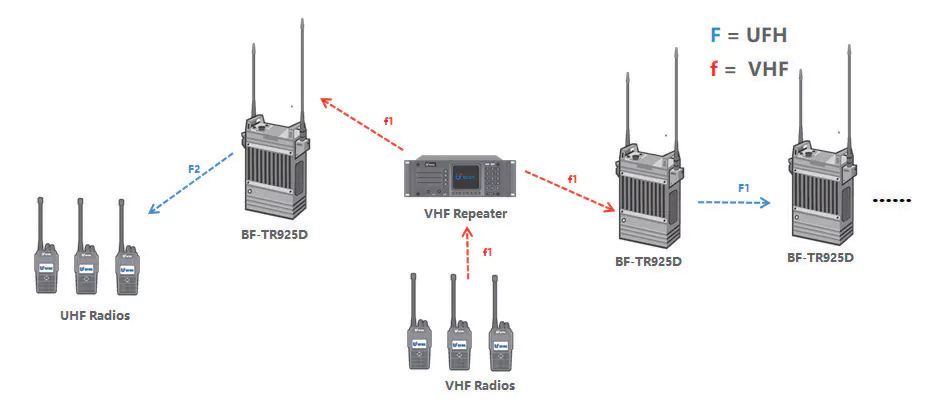

Multi BF-TR925D repeaters connect different areas repeaters

Different areas repeaters connect via multi crossband repeaters

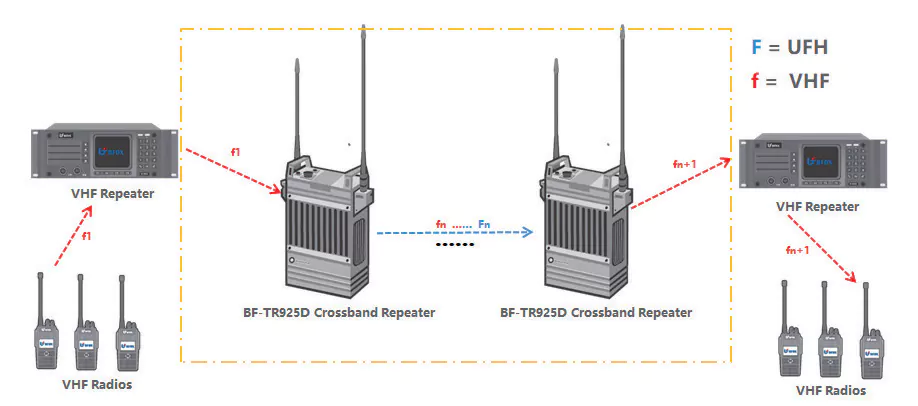

BF-TR925D expands last-mile communications

Last-Mile communication expansion

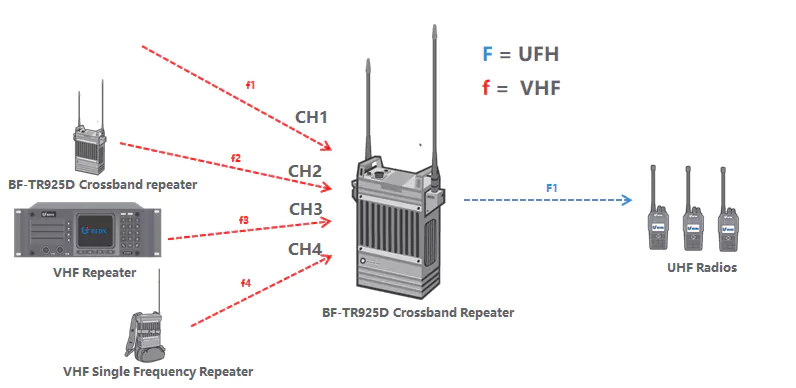

Hybrid networks via BF-TR925D repeater

Hybrid Networks

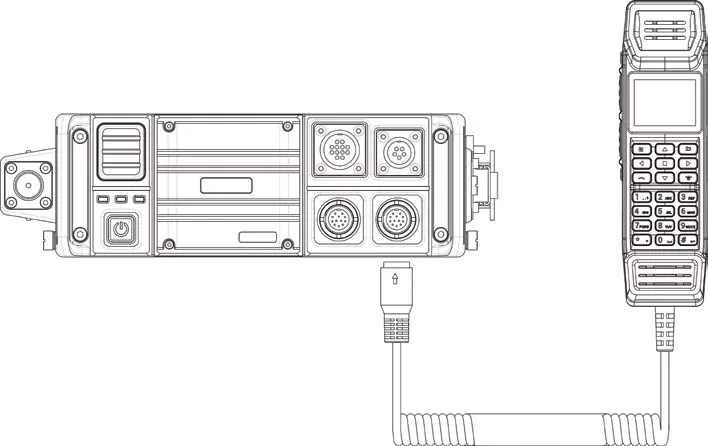

BF-TR925D repeater supports public network phone call

1. Connect with remote controller microphone BF-TC981 to enjoy PTT function as a DMR or analog radio.

2. Support 4G SIM card to realize public network phone call.

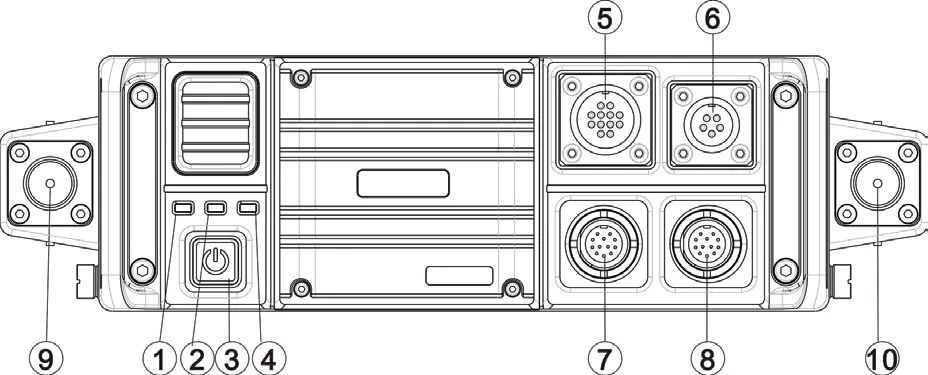

1Frequency A TX/RX
2Frequency B TX/RX
3Power Switch/Power Indicator
4Network Activity Indicator
5ACC Port
6Lan Port
7Mic Port 1
8Mic Port 2
9Antenna Port 1
10Antenna Port 2


IP68 for water and dust protection.

Rouge and robust, designed as per MIL STD 810F/G.

Advanced privacy with AES256/ARC4 digital encryption.

Modular design, easy to maintain and repair.

Flexible and power self-adaptive by different installation:

-Manpack with battery mode (with manpack kit, output power 3-15W)

-Desktop/vehicular mode (with AC/DC mounting kit, output power 5-25W)

IP connectivity multi sites connection (with specialized Ethernet cable).

Full duplex communication as DMR base radio (with remote control microphone).

Inbuilt GPS, convenient position tracking(optional).

Ad Hoc networking function(optional):

-Single band networking to realize multi-cascade jump, cover last mile communication.

-Dual band networking to realize multi-cascade jump, links and connect two Ad Hoc networks.

Self-destructing function to turn data to dust on command in case of information leakage.

Power-on password to ensure information security.




General
Frequency Range
VHF:136-174MHz; UHF:350-400MHz/ 400-480MHz/ 450-520MHz
Channel Capacity
3776
Channel Spacing
12.5KHz
Antenna Impedance
50Ω
Operating Voltage
Vehicular: DC13.8V(± 15%), negative ground; Battery: 10.8-12.6V
Operating Current
< 6A
Dimensions
302mm(L)*218mm(W)*76mm(H)(Without antenna and antenna base)
Weight
≤5kg (battery 2kg included)
Transmitter
RF Power (100% Duty Circle)
Vehicular: 5-25W(continuously); Manpack: 3-15W(continuously)
Frequency Stability
≤0.5ppm
4FSK Modulation
12.5KHz(Data Only):7K60FXD; 12.5KHz(Data & Voice):7K60FXW
Adjacent Channel Power
≤60dB
Spurious Radiation
-36dBm<1GHz; -30dBm>1GHz
Vocoder
AMBE
Receiver
Sensitivity
3%BER≤0.35µV
Frequency Stability
≤0.5ppm
Adjacent Selectivity
≥60dB
Intermodulation Rejection Ratio
≥65dB
Spurious Suppression
≥70dB
Blocking
≥90dB
Rated Audio Output Power
No speaker, can be connected to microphone
Environmental
Working Environment
-30℃~+70℃
Storage Temperature
-40℃~+85℃
Water & Dust Proof
IP68
Humidity Proof
MIL-STD-810G Standard
Shock & Vibration
MIL-STD-810G Standard
