DMR Ad Hoc Manpack Radio & Repeater

BF-TR925R(MC-N)

In emergency situations where there is no network coverage, Ad Hoc portable networks will be very helpful. As a member of the BF-TR925 family, BelFone TR925R(MC-N) is a manpack or vehicle mounted DMR Ad Hoc repeater designed for scenarios where no radio coverage is available to realize multi-cascade jump and last mile communication. With features of fast deployment, seamless communication, and ﬂexible networking, it works as both a radio, repeater, and mesh node, which greatly ﬁts search and rescue teams, personnel working at isolated utility sites, ﬁrst responders during disaster and rescue operations or for those working indoor, under- ground or in tunnels.

Brochure

Inquiry

Features & Benefits

Specification

Accessories

Multiple Working Modes, Highly Integrated

- DMR Ad Hoc repeater
- DMR single frequency repeater
- DMR base radio (DMR Tier I, II)
- Analog base radio
- PSTN gateway (working with BF-TC981)

Versatile Connectivity

- 4G wireless communications link
- Satellite communication link
- Narrowband communication link
- IP connectivity for multi-sites connection

Ease of Installation

- Manpack mounted
- Modular hardware design
- Vehicular/Desktop mounted

Flexible and Reliable Networking, Fast Deployment

- Multiple networking deployment: chain, tree, star, connected network, etc.; thus, users can choose different networking based on actual environment.
- Highly reliable network: Based on mobile wireless ad hoc network, the device is capable of creating and joining networks simply by power-on. Signals will switch to another node automatically to ensure link continuity, when one node within a network disconnects or malfunctions.

ID Authentication for Air Interface

Only ID-authenticated legitimate terminals can activate repeaters for voice and data service forwarding, thus avoiding illegal users from stealing and occupying channel resources and affecting normal communications.

Multi Working Mode, Highly Integrated

DMR Ad Hoc repeater

DMR single frequency repeater

DMR base radio (DMR Tier I, II)

Analog base radio

PSTN gateway (working with BF-TC981)

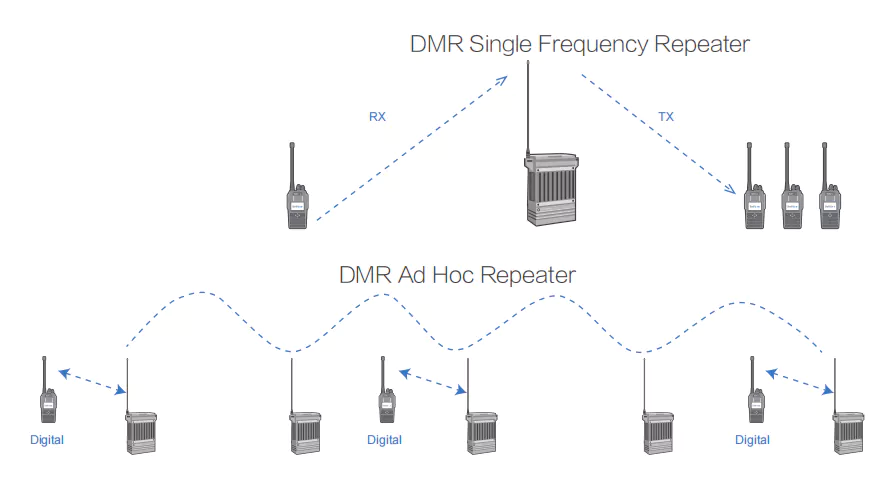

Working modes of BelFone BF-TR925R: single frequency repeater/AD HOC repeater

DMR and Analog Base Radio/PSTN Gateway (working with BF-TC981)

1. Connect with remote controller microphone BF-TC981 to enjoy PTT function as a DMR or analog radio.

2. Support 4G SIM card to realize public network phone call.

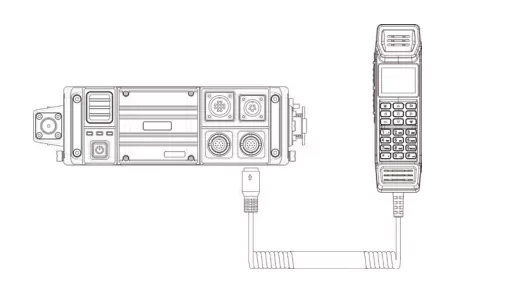

Remote controller microphone BF-TC981 connected with BelFone BF-TR925R

Versatile and Ease of Fixing

Manpack mounted

Put a battery and manpack with holder for portable repeater, manpack can put extra battery for emergency backup use

Modular hardware design

Modular hardware design for easy maintenance and repair, only change the faulty modules without changing the complete repeater if faulty founded

Vehicular/Desktop mounted

Put a vehicular hub with AC/DC power supply and vehicular antenna, repeater will work as vehicular repeater/base radio by DC 13.8V(±15％) or AC(80-264V)

Flexible and Reliable Networking, Fast Deployment

Multiple networking deployment: chain, tree, star, connected network etc., thus users can choose different networking based on actual environment.

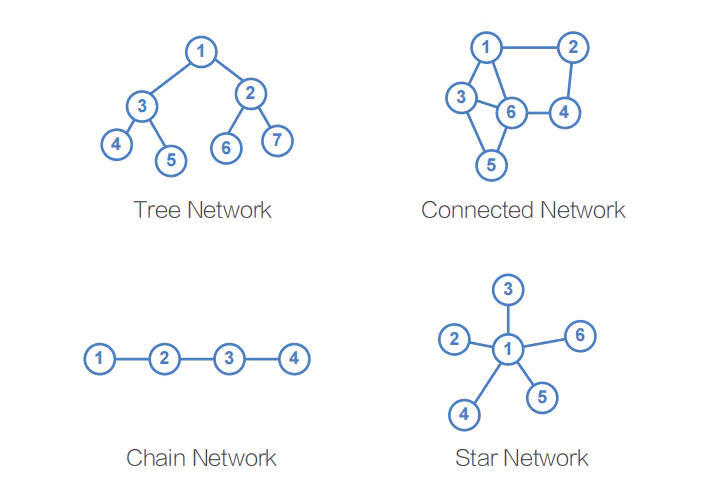

Multiple networking deployment of BelFone BF-TR925R: chain, tree, star, connected network

Features and Details

Ø Ad Hoc networking on a 25KHz bandwidth frequency, up to 32 hops, compatible with regular DMR radios.

Ø IP68 water and dust protection.

Ø MIL STD 810F/G standard ruggedness.

Ø AES256/ARC4 digital encryption.

Ø Self-adaptive power for different installations.

- Manpack with battery mode (with manpack kit, output power 3-15W).

- Desktop/vehicular mode (with AC/DC mounting kit, output power 5-25W).

Ø IP connectivity for multi-sites connection (with specialized Ethernet cable).

Ø Full duplex communication as DMR base radio (with remote control microphone).

Ø Built-in GPS, convenient position tracking(optional).

Ø Self-destructing function to wipe out data in case of information leakage.

Ø Power-on password to ensure information security.

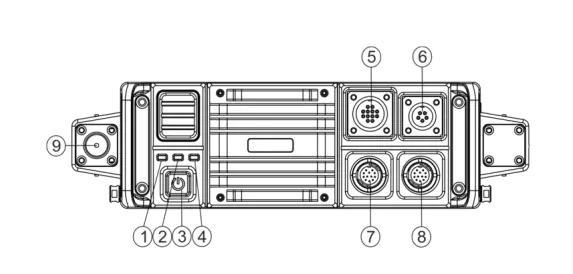

Interface of BelFone BF-TR925R DMR AD HOC REPEATER / ENCRYPTED BASE RADIO SET

1	Slot 1 working indicator
2	Slot 2 working indicator
3	Power Switch/Power indicator
4	Network indicator
5	ACC Port
6	Lan port
7	Palm mic port
8	Program port
9	Antenna Port1

General

Frequency Range

VHF：136-174MHz; UHF：350-400MHz/ 400-480MHz/ 450-520MHz

Channel Capacity

3776

Channel Spacing

12.5KHz

Antenna Impedance

50Ω

Operating Voltage

Vehicular: DC13.8V(± 15％), negative ground; Battery: 10.8-12.6V

Operating Current

< 6A

Dimensions

302mm(L)*218mm(W)*76mm(H)（Without antenna and antenna base）

Weight

≤5kg (battery 2kg included)

Transmitter

RF Power (100% Duty Circle)

Vehicular: 5-25W(continuously); Manpack: 3-15W(continuously)

Frequency Stability

≤0.5ppm

4FSK Modulation

12.5KHz(Data Only)：7K60FXD; 12.5KHz(Data & Voice)：7K60FXW

Adjacent Channel Power

≤60dB

Spurious Radiation

-36dBm<1GHz; -30dBm>1GHz

Vocoder

AMBE

Receiver

Sensitivity

3%BER≤0.35µV

Frequency Stability

≤0.5ppm

Adjacent Selectivity

≥60dB

Intermodulation Rejection Ratio

≥65dB

Spurious Suppression

≥70dB

Blocking

≥90dB

Rated Audio Output Power

No speaker, can be connected to microphone

Environmental

Working Environment

-30℃～+70℃

Storage Temperature

-40℃～+85℃

Water & Dust Proof

IP68

Humidity Proof

MIL-STD-810G Standard

Shock & Vibration

MIL-STD-810G Standard
