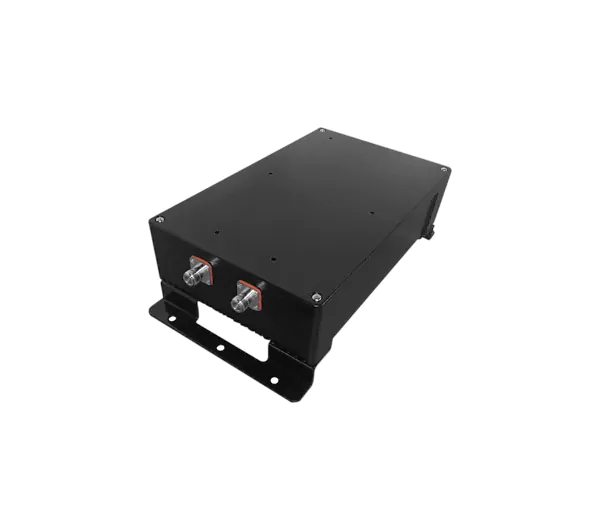

RU（Remote Unit）

RU（Remote Unit）

The main function of the remote unit is to provide wireless signal coverage.
Brochure
Inquiry
Topology &Networking
Specification



The front panel of the remote unit interface from left to right


311: The remote unit AP power supply port DC 48V

312: The remote unit AP Ethernet port (RJ45)

313: The remote unit AP Ethernet network (Optic)

314: The remote unit optical port for extension unit.

315: The remote unit Power interface.


SPECIFICATION
1
Support Ethernet interface
2
Support optical fiber transmission interface
3
Support DC remote power supply
4
Support broadband transmission channels
5
Support WLAN transport channels
6
Support 2G/3G/4G/4G2 signal
7
Dual antenna mode with 4 duplexers, supporting built-in integrated antenna configuration
8
Power rating 27/23 dBm
9
Support uplink and downlink attenuation function
10
Support time delay adjustment, the adjustment range is 128us, the delay adjustment accuracy is less than 3us
11
Power consumption about 60W (POE power supply 4-mode 23dBm, Ethernet mode, not including AP)
12
Power supply: +9V -- +27V DC
13
Operating temperature: -40℃ -- +55℃
14
Size: 360 mm * 255 mm * 70 mm
15
Weight: 5.2 KG
