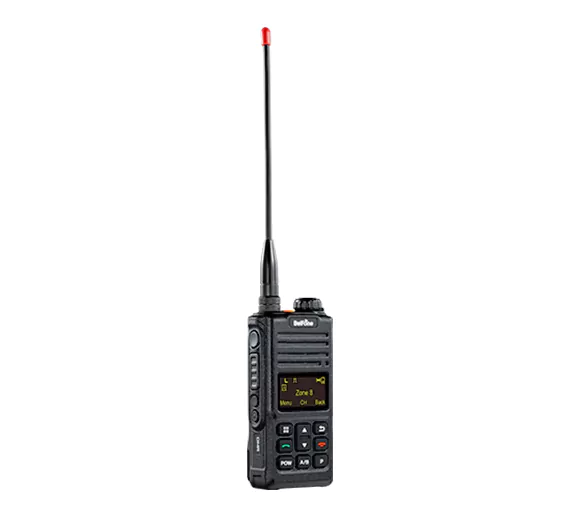

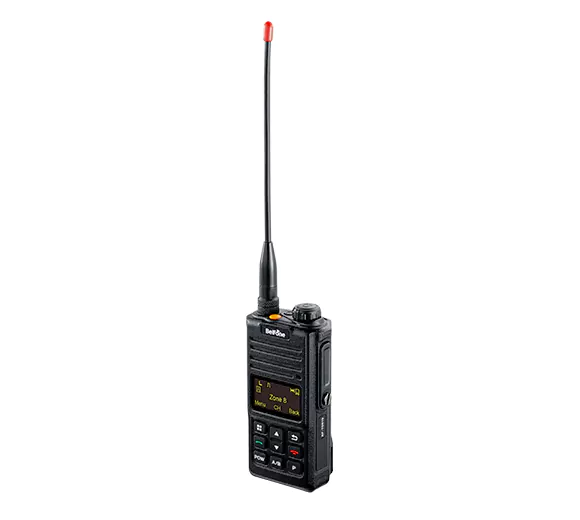

UV Dual Band Portable Radio for Emergency Communications

BF-TD910D/UV

BF-TD910UV is a rugged dual-band two-way radio capable of operating on both VHF and UHF bands and in both analog and digital mode; so different users can simultaneously monitor and communicate with other agencies for better collaboration. Its comprehensive feature kit includes versatile calls, emergency call, lone workers, scan/monitor, roaming, transmission authentication, etc. It works in a great diversity of communication scenarios, such as indoor operations, outdoor operations, teamwork, and emergency response.
Brochure
Inquiry
Features & Benefits
Specification
Accessories
Dual Band Interoperability
Dual Band Interoperability
The device is valuable as it performs across multiple digital and analog networks and operates in either VHF or UHF for instant interoperability. Now you can efficiently manage mission critical voice and data in any environment and significantly improve your safety and response time.
Reliable in The Toughest Conditions
Reliable in The Toughest Conditions
This tough IP68 radio is designed to brave the challenges of harsh environments, almost immune to water and dust intrusion. It keeps your workers connected safely and productively, wherever the job takes them.
Advanced Information Security
Advanced Information Security
- ARC4, AES256 and TF card encryption technologies and authentication to protect mission critical radio system from unauthorized access or malicious disruption.
- Users can destroy voice records and important data through the terminal to prevent information leakage.


UV Dual Bands

BF-TD910D is a dual-band radio with two PTT buttons that, when not transmitting, is on standby for signals from both bands. The user only needs to push a corresponding PTT button to initiate a talk on either band. This is extremely convenient for users with cross-department communication needs.


Automatic Roaming

BF-TD910D automatically roams among all sites in the network and always stays connected. This delivers more efficiency and flexibility to your radio communications.


IP68 Protection

Our tough IP68 radio BF-TD910D is designed to brave the challenges of harsh environments. So, environmental factors are one less thing to worry about.


Superior Audio Quality

BF-TD910D incorporates advanced audio processing technology to effectively suppress background noise and enhance audio quality, delivering a most loud and clear audio.


Personnel Safety

Our intrinsically safe BF-TD910D comes with features like Rescue Mode, Lone Worker and Emergency Alarm, to keep your staff safe and sound. Safety comes first!


Information Security

The ARC4 and AES256 encryption technologies keep your communications safe and private, optimizing your information security.

BF-TD910D: ARC4 and AES256 encryption


Radio Priority-Based Interruption

A radio with higher priority can interrupt communications between radios with lower priorities, either to transmit or just to clear a channel. This greatly facilitates commanding and dispatching.


User Authentication

The inbuilt ESN authentication and standard authentication can effectively prevent illegal users from accessing BF-TD910D. Both your missions and your information stay uninterrupted from the outside.


DMO True 2-Slots

In direct mode BF-TD910D supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths at 1 frequency with no extra costs or frequency license.

BF-TD910D: DMO true 2-slots in direct mode


Compatible with BMC System

BF-TD910D can work within the BMC system to deliver more emergency response features.


DMO Pseudo Trunk

The user can choose slot 1 or slot 2 for communications. When one slot is occupied the radio will automatically switch into the free slot. Frequency efficiency is greatly increased.

BF-TD910D: DMO Pseudo Trunk



General
Frequency Range
VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channels
1024
Zones
128
Channel Spacing
12.5KHz/ 25KHz
Working Voltage
DC7.4V (±20%)
Frequency Stability
1.5ppm
Antenna Impedance
50Ω
Battery Capacity
2500mAh (3350mAh optional)
Battery Average Working
2500mAh battery: Digital 21 hours, Analog 16 hours; 3350mAh battery: Digital 30 hours, Analog 23 hours
Dimension
56(L)* 33(W)* 129(H) mm
Weight
315g (including battery)
Transmitter
Power Output
High power: 4W/U band; 5W/V band; Low power: 1W
4FSK Modulation
12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
FM Modulation
12.5KHz: 8K50F3E; 25KHz: 16KφF3E
Modulation Limitation
±2.5KHz @ 12.5KHz; ±5KHz @ 25KHz
FM Noise
40dB
Spurious Emission
-36 dBm≤1GHz; -30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3dB
Vocoder
AMBE++
Audio Distortion
≤5%
Receiver
Digital Sensitivity
5% BER: 0.25μV
Analog Sensitivity
0.25uV (12 dB SINAD)
Intermodulation
70dB
Adjacent Channel Selectivity
60dB @ 12.5kHz; 70dB @ 25kHz
Spurious Suppression
70dB
FM Noise
40dB @ 12.5kHz; 45dB @ 25kHz
Frequency Response
+1/-3 dB
Audio Power
0.5W (8Ω load)
Audio Distortion
≤5%
Conduction Radiation
-57dBm
GPS Precision
Horizontal Accuracy ≤10m (with good signal)
TTFF (first location) Cold Boot
<1 minutes (with good signal)
TTFF (first location) Hot Boot
<10 seconds (with good signal)
Environmental Specifications
Operating Temperature
-30℃~+60℃
Storage Temperature
-40℃~+85℃
Water Proof
IP68
Shock & Vibration
MIL-STD-810C/D/E/F
