Unveiling the Tier III Trunking Portable Radio

BF-TD950

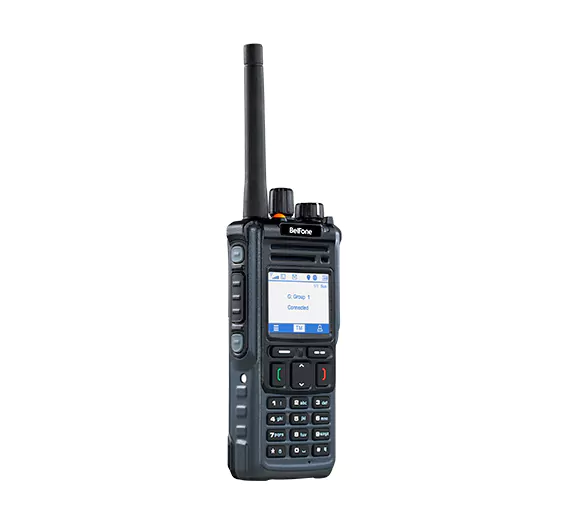

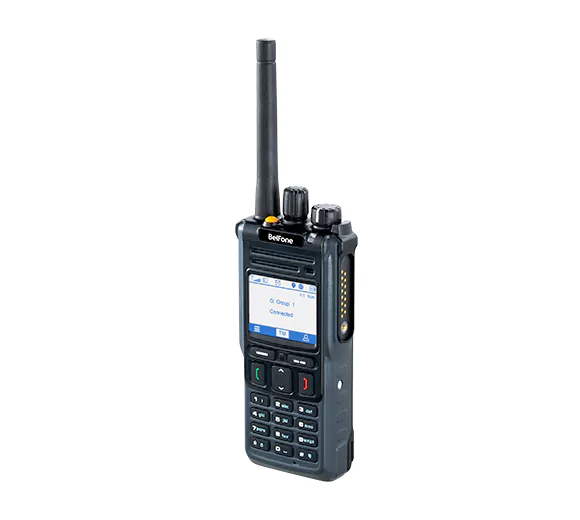

BF-TD950 is a full duplex DMR trunking portable radio with GPS, IP68 protection, and MIL-STD-810 C/D/E/F/G Standard, which delivers outstanding performance even in harsh environments. Featuring a sleek yet robust design, the BF-TD950 is enhanced with a 2.0-inch HD color screen, ensuring effortless readability in diverse lighting conditions. Besides the conventional digital functions, BF-TD950 enjoys the advantages of a long battery standby time and full duplex calls. Elevate your trunking experience with the BF-TD950 - where reliability meets innovation, making it the ideal choice for professionals seeking top-tier performance in any setting.
Brochure
Inquiry
Features & Benefits
Specification
Accessories

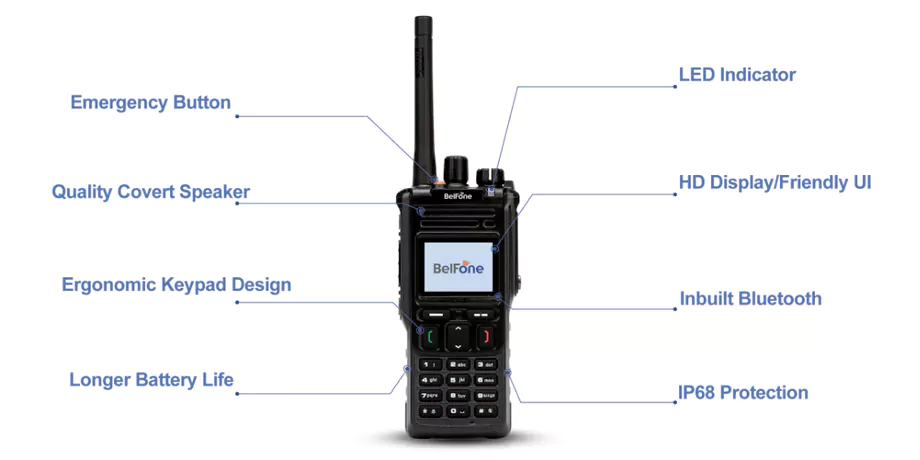

Enhanced Communication Efficiency
Enhanced Communication Efficiency
- DMR Trunking Mode enables access to a pool of radio channels, which are dynamically allocated to users when required.
Superior Quality in Harsh Environments
Superior Quality in Harsh Environments
- The IP68 level ruggedness ensures the quality voice calls in toughest conditions like dropping on the concrete, temperature shocks, blowing dust, wind driven rain, etc.
- Ergonomic Design: 2.0” high definition IPS display, readable in all lighting conditions.
Superior Audio Quality
Superior Audio Quality
It incorporates advanced audio processing technology to effectively suppress background noise and enhance audio quality to deliver a loud and clear audio.
Advanced Encryption
Advanced Encryption
ARC4& AES256, optional TF card encryption technology ensure safe and private communications, optimizing your information safety.




GPS Positioning

With better accuracy and precision, the built-in GPS enables the commander to locate and track his team member. This contributes a lot to personnel management and dispatching.


IP68 Protection

Our tough IP68 radio BF-TD950 is designed to brave the challenges of harsh environments. So, environmental factors are one less thing to worry about.


Superior Audio Quality

BF-TD950 incorporates advanced audio processing technology to effectively suppress background noise and enhance audio quality, delivering a most loud and clear audio.


A Long Battery Life

With a battery capacity of 3400mAh, BF-TD950 can easily power you through your longest working day. BF-TD950 can work straight for 17 hours in trunking mode.


Automatic Roaming

BF-TD950 automatically roams among all sites in the network and always stays connected. This delivers more efficiency and flexibility to your radio communications.


DMR Tier III Trunking Mode

BF-TD950 is compatible with BelFone BTX/ETXTrunking System. When working in DMR Tier 3 Trunking mode, BF-TD950 can access a pool of radio channels which are dynamically allocated to users when required. This is more frequency efficient.


Radio Priority-Based Interruption

A radio with higher priority can interrupt communications between radios with lower priorities, either to transmit or just to clear a channel. This greatly facilitates commanding and dispatching.



General
Frequency Range
UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channels
1024
Zones
64
Channel Spacing
12.5KHz/ 25KHz
Working Voltage
DC7.4V (±20%)
Frequency Stability
±0.5ppm
Antenna Impedance
50Ω
Battery Capacity
3350 mAh
Battery Average Working Time
Digital 24 hours; Analog 20 hours
Dimension
56(L)* 33(W)* 129(H) mm
Weight
330g (including battery pack)
Transmitter
Power Output
High power: 4W/U band; 5W/V band; Middle power: 2W; Low power: 1W
4FSK Modulation
12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
FM Modulation
12.5KHz: 8K50F3E; 25KHz: 16KφF3E
Modulation Limitation
±2.5KHz @ 12.5KHz; ±5KHz @ 25KHz
FM Noise
-40dB
Spurious Emission
-36 dBm≤1GHz; -30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3dB
Vocoder
AMBE++/NVCO
Audio Distortion
3%
Receiver
Digital Sensitivity
5% BER: 0.22 μV
Analog Sensitivity
0.22uV (12 dB SINAD)
Intermodulation
70dB
Adjacent Channel Selectivity
60dB
Spurious Suppression
70dB
FM Noise
-40dB
Frequency Response
+1/-3 dB
Audio Power
1.0W (8Ω load)
Audio Distortion
3% (typical)
Conduction Radiation
-57dBm
GPS Precision
Horizontal Accuracy ≤110m (with good signal)
TTFF (first location) Cold Boot
<30 seconds(with good signal)
TTFF (first location) Hot Boot
<10 seconds (with good signal)
Environmental Specifications
Operating Temperature
-30℃~+60℃
Storage Temperature
-40℃~+85℃
Water Proof
IP68
Shock & Vibration
MIL-STD-810C/D/E/F
