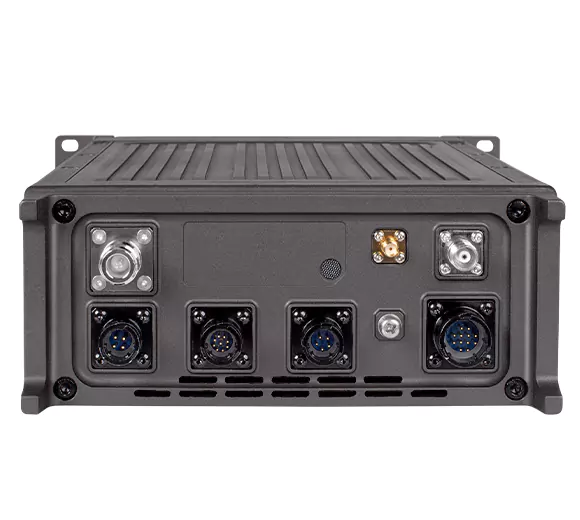

Professional DMR Repeater Module

BF-TR900

BF-TR900 is a highly integrated DMR repeater in the BelFone BMC system with the ruggedness of IP54 and MIL-STD-810G Standard to tackle various harsh environments. This versatile repeater can function as a ﬁxed base station, and it supports IP networking as well as simulcasting mode. Unlike traditional repeaters, BF-TR900 runs with a self-inspection circuit and module redundancy to ensure steady and reliable operation.

Brochure

Inquiry

Features & Benefits

Specification

Accessories

Multiple Working Modes

- Repeater mode
- SDC base station (Smart Digital Connect, BelFone Centralized IP interconnect system).
- Simulcast base station
- Channel unit of SDP (virtual trunking) base station
- PSTN gateway (working with BF-TC981)

Modular Design for Flexible Deployment

- Renewable transceiver
- Baseband module
- Be replaced easily if faulty

Ease of Maintenance

- The transceiver and baseband module can be easily replaced or changed to another frequency band. It supports upgrade to Simulcast Base Station working mode
- PA module can be replaced easily or changed to another frequency band. Both PA module and transceiver module need to be replaced together when frequency band needs to be changed.

ID Authentication for Air Interface

Only ID-authenticated legitimate terminals can activate repeaters for voice and data service forwarding, thus avoiding illegal users from stealing and occupying channel resources and affecting normal communications.

Features and Details

Ø Exceptional noise-canceling design for the loud and clear audio.

Ø 5-50W output power (continuous), extending communication range and coverage.

Ø Digital and analog dual modes.

Ø 2.8” large size display and full keypad.

Ø IP54 water and dust resistance.

Ø IP connectivity for BelFone BMC and SDC system, support 4 repeaters to realize non-centralized IP Multi-sites and smart IP Connect.

Ø Grid network design (3 levels), multi-level command and control for radio communications.

Ø Gateway for inter-network communication.

Ø Remote setting, monitor, transmit interrupt.

Ø Advanced security with AES256/ARC4 digital encryption.

Ø Self-destruction of data in case of system integrity compromise.

Ø Power-on password to ensure information security.

General

Model

TR900 TR900M

Frequency Range

VHF: 136-174MHz; UHF: 350-390/400-470/450-520MHz

Zone

128 Zone 1: 4; Zone 2: 3000; Zone 3: 3000

Channel Capacity

2048 3776

Channel Spacing

12.5KHz

Antenna Impedance

50Ω

Operating Voltage

DC13.8V(±15％), negative ground

Current

<9A

Size

330mm(L)*218mm(W)*88mm(H) mm

Weight

6kg

Transmitter

Output Power

5-50W (continuous)

Frequency Stability

≤±0.5ppm (without GPS); ≤±0.2ppm (with GPS)

4FSK Modulation

12.5KHz (data only): 7K60FXD; 12.5KHz (data and voice): 7K60FXW

Adjacent Channel Power Ratio

≤60dB

Spurious Radiation

-36dBm<1GHz; -30dBm>1GHz

Vocoder

AMBE

Receiver

Digital Sensitivity

3%BER≤0.35µV

Frequency Stability

≤±0.5ppm (without GPS); ≤±0.2ppm (with GPS)

Adjacent Channel Selectivity

≥60dB

Intermodulation Immunity

≥70dB

Spurious Response

≥70dB

Blocking

≥95dB

Rated Audio Power Output

2W(8Ω)

Max. Audio Power Output

10W(8Ω) External

Environmental

Working Temperature

-30℃～+70℃

Storage Temperature

-40℃～+85℃

Humidity Protection

MIL-STD-810C/D/E/F

Shock and Vibration

MIL-STD-810C/D/E/F

Standard Accessories

BF-TC981

Handheld Microphone
