BF-TM950
BF-TM950

Enhanced Trunking DMR Tier III Mobile Radio

BF-TM950

With a strong anti-interference function, this efficient mobile radio can work in different modes, including DMR Tier III trunk- ing, MPT1327, DMR and analog conven tional, ensuring its interoperability with the legacy analog networks. Operated on a desktop or mounted in a vehicle, its flexible design enables great performance through its simple operation via the hand- held microphone, making it an ideal solution for public security, rescue, utilities, etc.
Brochure
Inquiry
Features & Benefits
Specification
Accessories
Professional Industrial Design
Professional Industrial Design
- Control panel with a 2.8-inch display

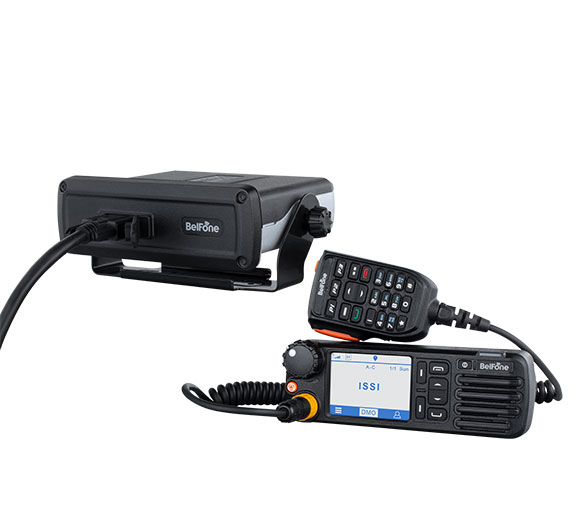

- Remote mount head supported. The mobile radio receiver and transmitter could be separated, which is convenient for flexible installation on car or motorcycle.
Enhanced Communication Efficiency
Enhanced Communication Efficiency
- Incorporating ground-breaking full-duplex call technology to allow simultaneous two-way voice calls.
- DMR Trunking Mode enables access to a pool of radio channels, which are dynamically allocated to users when required.
Four Modes
Four Modes
- It works in DMR Tier III, MPT 1327, DMR Tier II & Analog Conventional mode, seamlessly switching between networks with uninterrupted communication experience.
Enhanced Worker Safety
Enhanced Worker Safety
Lone worker, emergency calls, covert mode, GPS and location services, active and positive alarm mode ensure personnel safety.


Enhanced Communication Efficiency

·Incorporating ground-breaking full-duplex call technology to allow simultaneous two-way voice calls.

·DMR Trunking Mode enables access to a pool of radio channels, which are dynamically allocated to users when required.


Professional Industrial Design

Control panel with a 2.8-inch display. Remote mount head supported. The mobile radio receiver and transmitter could be separated, which is convenient for flexible installation on a car or motorcycle.


Enhanced User Safety

Lone worker, emergency calls, covert mode, GPS and location services, and active and positive alarm mode ensure personnel safety.


Four Modes

It works in DMR Tier III, MPT 1327, DMR Tier ll & Analog Conventional mode, seamlessly switching between networks with uninterrupted communication experience.


Safety Services

·Emergency call

·Lone-Worker

·Covert mode

·Analog alarm

Data Services

·Status/SDS messaging (in TMO & DMO)

·Group Message

·ARC4& AES256 Encryptions

·TF card encryption

Voice Services

·Full duplex call

·DMR Virtual Trunking

General Performance

·Frequency bands: VHF:136-174MHz

 UHF: 350-400/400-470/450-520MHz

·1024 channels/ 64 zones

·Display: 2.8-inch IPS

·IP54 protection

·50W output power, 3W speaker

Applications

·Automatic roaming

·GPS/ Satellite

·Support Bluetooth 4.0

·Intimate functions like stopwatch,

 alarm clock, calendar, etc.

·Keyboard lock





General
Frequency Range
UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channel Capacity
1024
Zones
64
Channel Spacing
12.5KHz
Working Voltage
DC13.8V (±15%)
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Dimension
175(L)* 175(W)* 63(H) mm
Weight
1.51kg
Operating Temperature
-20℃~+70℃
Storage Temperature
-40℃~+80℃
Transmitter
Power Output
H:30W; L:10W
4FSK Modulation
12.5KHz (data only): 7K60FXD; 12.5KkHz (data and voice): 7K60FXE
FM Modulation
12.5KHz: 8K50F3E
Modulation Limitation
+/- 2.5KHz @ 12.5KHz
FM Noise
-40dB
Spurious Emission
-36 dBm≤1GHz; -30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3dB
Vocoder
AMBE +2™
Audio Distortion
≤3%
Receiver
Digital Sensitivity
5% BER: 0.25 uV
Analog Sensitivity
0.25 uV (12 dB SINAD)
Intermodulation
60dB
Adjacent Channel Selectivity
60dB
Spurious Response Suppression
70dB
FM Noise
-40dB
Frequency Response
+1/-3 dB
Audio Power
3W
Audio Distortion
≤3% (typical)
Conduction Radiation
-57dBm
GPS Precision
Horizontal Accuracy ≤-10m (with good signal)
TTFF (first location) Cold Boot
<1 minute(with good signal)
TTFF (first location) Hot Boot
<10 seconds (with good signal)
