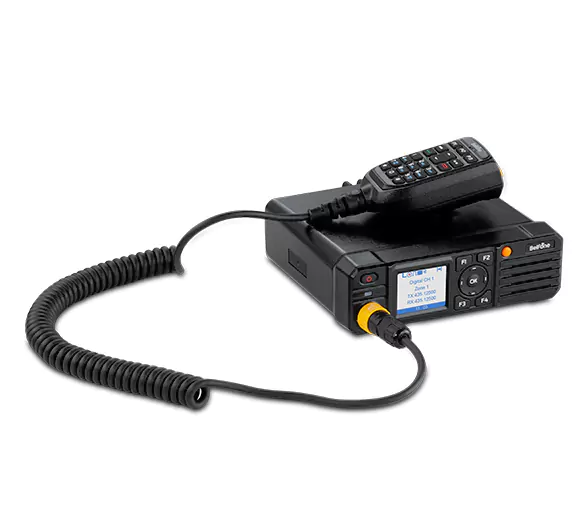

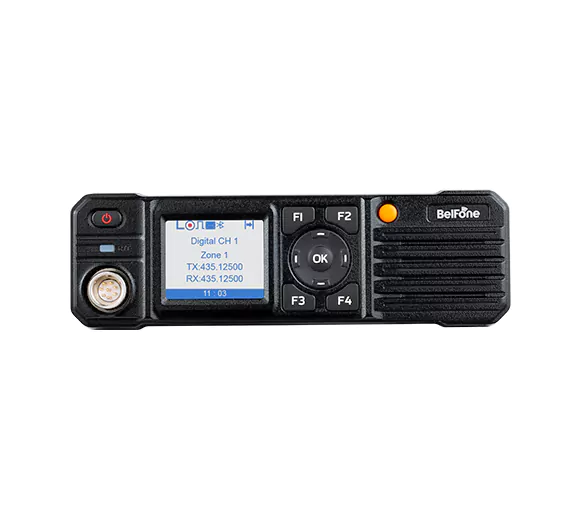

Enhanced Conventional Mobile Radio

BF-TM8500

This mobile radio is a reliable, cost-efficient solution to keep your team communicating, coordinating, and collaborating for maximum efficiency and safety. With features of 50W high power for long-range communication, power-on password, Bluetooth, access to BelFone conventional DMR systems to enjoy call capacity and clear voice communications, etc., the radio enables your workers to connect without distraction, whether they’re delivering cargo, dispatching trucks or transporting passengers.
Brochure
Inquiry
Features & Benefits
Specification
Accessories
Full DMR Conventional Features
Full DMR Conventional Features
Suitable for small properties, construction site and motorcade. It easily and flexibly realizes efficient and rapid communication in the control area.
Abundant Features for Business Users
Abundant Features for Business Users
More features like recording, Bluetooth voice and programming, OTAP via Bluetooth, GPS and automatic roaming benefit users greatly.
User Friendly Design
User Friendly Design
- Bright, Color LCD Display: The high contrast color display is easy to read in all kinds of lighting.
- Power-on Password: Nobody can mess with your radio.
- Status Voice Prompt: This user-friendly function enables the drivers to keep their eyes on the road.


Transmit Interrupt

This function enables a supervisor to interrupt a radio conversation in order to clear a channel for more important communications.


Radio Priority-Based Interruption

This function enables a radio with a higher level to interrupt communication between radios with lower levels, giving higher priority to radios with higher levels. This means better dispatching efficiency.


GPS(Optional)

When activated, the integrated GPS will enable BF-TM8500 to constantly send its location information to the command center for the commander to see in real-time. All your vehicles stay tractable and accounted for.


adjustable power

Our flexible BF-TM8500 comes with 3 adjustable power levels. The user can use 50W high power to further extend talk range or switch to lower power levels to extend radio standby time, according to his specific needs.


RemoteKill/Revive

Such functions greatly facilitate dispatching work and can be especially useful if you want to kill a lost radio.


Secure Communications

Use digital encryption to code and decode all voice calls, and support both dynamic and static encryption for secure communications.


AutomaticRoaming

In an IP multi-site network, BF-TM8500 can automatically roam from site to site and stay connected, delivering seamless communications.


Digital Features

Private Call

Remote Monitor

Emergency Alarm

Group Call

Digital Encryption

All Call

Radio Check

SMS

Remote Kill/Revive

Analog Features

CTCSS/DCS

Busy Channel Lockout

Squelch Levels

Narrow/Wide Band




General
Frequency Range
VHF: 136-174MHz; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channel Capacity
1024
Zones
64
Channel Spacing
12.5KHz
Working Voltage
DC13.8V (±15%))
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Dimension
175(L)* 175(W)* 63(H) mm
Weight
1.51kg
Operating Temperature
-20℃~+70℃
Storage Temperature
-40℃~+80℃
Transmitter
Power Output
VHF/UHF H:30W; VHF/UHF L:10W
4FSK Modulation
12.5KHz (data only): 7K60FXD; 12.5KkHz (data and voice): 7K60FXE
FM Modulation
12.5KHz: 8K50F3E
Modulation Limitation
+/- 2.5KHz @ 12.5KHz
FM Noise
-40dB
Spurious Emission
-36 dBm≤1GHz; -30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3dB
Vocoder
AMBE +2™
Audio Distortion
≤3%
Receiver
Digital Sensitivity
5% BER: 0.25 uV
Analog Sensitivity
0.25 uV (12 dB SINAD)
Intermodulation
60dB
Adjacent Channel Selectivity
60dB
Spurious Response Suppression
70dB
FM Noise
-40dB
Frequency Response
+1/-3 dB
Audio Power
3W
Audio Distortion
≤3% (typical)
Conduction Radiation
-57dBm
GPS Precision
Horizontal Accuracy ≤-10m (with good signal)
TTFF (first location) Cold Boot
<1 minute(with good signal)
TTFF (first location) Hot Boot
<10 seconds (with good signal)
