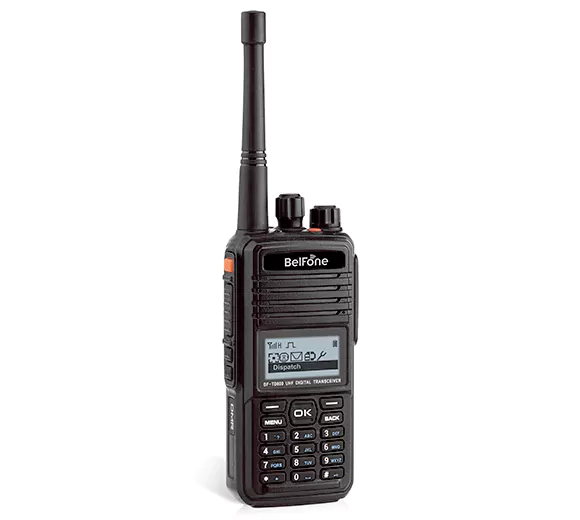

DMR Portable Radio

BF-TD800

DMR Tier II portable radio TD800 is designed to be used in smart dispatch patrol system which provides versatile voice and data service for critical communication. TD800 integrated with GPS and RFID technology, offers a smart management method for personnel and facilities, ensuring higher safety and efficiency for the organizations. Supporting multi-roaming and with IP67 for dust & water protection. BE— TO8OO is a rough and compact radio you can trust to keep your work teams connected.
Brochure
Inquiry
Features & Benefits
Specification
Accessories

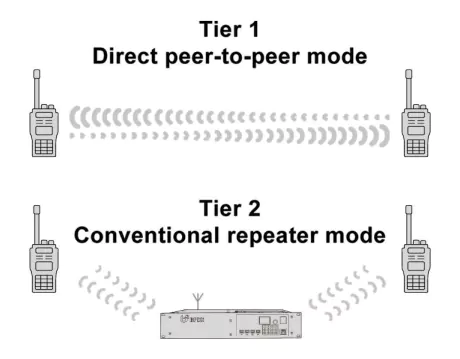

DMR TDMA 2 time slots on a 12.5kHz single frequency channel

It provides group call, private call and emergency call on one slot, and used the other slot to provide versatile data services, such as Text Message, Patrolling Checking(RFID), Location Positioning and Tracking (GPS for outdoors and RFID for indoors), and can make dispatching and remote controlling over the same frequency.


Patrolling Checking RFID

With planned RFID checkpoint and RFID radio, can set rules for users in patrol group, can set the route, start time, arrive

time, duration, required working days in the week or in the calendar. And a result of patrol statistic will be calculated automatically by the system.


Location Positioning and Tracking GPS

You can track vehicles and assets without additional equipment to purchase, install or maintain. It can send location information to dispatcher systems and you can view GPS positioning information.


Roaming Function

Create wide area coverage and automatically roam from one coverage area to another with no manual intervention.


IP67 for dust & water protection

Dustproof and splashproof, so you can work with confidence in challenging environments.


Geo fence

An alert will be given to control center if he goes out the boundary of the fence, or doesn't have any movements for a set period.


Device user level management, terminal dispatcher

Different user level can be set (commander, level1/2/3 user etc.)to fit different communication scenarios and dispatching priority.


Two-channel Digital TDMA System




General
Frequency range
VHF:136-174;UHF:350-390/400-470/450-520 MHz
Channel Capacity
38
Channel Spacing
12.5KHz/25KHz
Operating Voltage
DC 7.4V (±20%)
Battery capacity
2000 mAh
Battery Life(5/5/90)
20 Hours (GPS Off)
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Dimensions
60(L)* 39(W)* 103(H)mm
Weight
291g (include battery)
Transmitter
RF Output Power
High Power:5W; Low Power:1W
4FSK Modulation
12.5kHz only data:7K60FXD; 12.5kHz data and audio:7K60FXE
FM Modulation
12.5 kHz:8K50F3E;
Modulation Limiting
±2.5kHz @ 12.5kHz;
FM Noise
-40dB
Conducted Emission
-36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Audio Response
+1/-3 dB
Audio Distortion
0.03
Digital Voice coder Type
AMBE+3000
Receiver
Digital Sensitivity
5% BER:0.25 uV
Intermodulation
>60dB
Adjacent Channel Selectivity
>60 dB
Spurious Response Rejection
>65 dB
FM Noise
-40dB
Audio Response
+1/-3 dB
Audio output power
500mW
Audio Distortion
3% (Typical)
Conducted Spurious Emission
-57dBm
GPS Accuracy
Horizontal Accuracy≤-10m(with well signal)
TTFF (Time To First Fix) Cold Start
< 1 minute(with well signal)
TTFF (Time To First Fix) Hot Start
< 10second(with well signal)
Environmental Specifications
Operating Temperature
-20℃—+60℃
Storage Temperature
-30℃—+85℃
Humidity
MIL-STD-810C/D/E/F Standard
Vibration & Shock
MIL-STD-810C/D/E/F Standard
