DMR Ad-Hoc Portable Radio for Emergency Communications

BF-TD930(MC-N)

Designed for emergency response systems and part of the TD930 family, the BF-TD930(MC-N) serves as both a mobile repeater and a high-end digital radio. It incorporates advanced features such as virtual trunking, IP68 protection, GPS tracking, full-duplex communica- tion, Ad-Hoc networking, and Single Frequency Repeater (SFR). The Ad-Hoc functionality allows for rapid network creation and flexible deployment. Additionally, safety features like man-down detection, lone worker monitoring, and emergency alerts help ensure the safety and security of users. These features make it an invaluable tool for on-site personnel, ranging from public security to emergency responders.
Brochure
Inquiry
Features & Benefits
Specification
Accessories
Flexible and Reliable Ad Hoc Networking
Flexible and Reliable Ad Hoc Networking
Without dedicated repeaters, this radio can speedily establish a portable Ad Hoc network, which is self-adapting and dynamically workable with as many nodes as it may need. It supports versatile network topologies.
Handheld/SFR Dual Modes
Handheld/SFR Dual Modes
This device functions as a single frequency repeater, allocating one timeslot to receive and the other to transmit at same frequency; and use DMO mode to furtherly extend radio coverage. One single device serves two purposes.
Enhanced Communication Efficiency
Enhanced Communication Efficiency
Incorporating ground-breaking full-duplex technology to allow simultaneous two-way voice calls, it facilitates crucial information exchange and makes sure the voice call gets through even in peak traffic.
Indoor and Outdoor Positioning
Indoor and Outdoor Positioning
With better accuracy and precision, built-in GPS and wireless modules enable the commander to locate and track team members, which contributes a lot to personnel management and dispatching.


DMO Pseudo Trunk

The user can choose slot 1 or slot 2 for communications. When one slot is occupied the radio will automatically switch to the free slot. Frequency efficiency is greatly increased.


Full Duplex Communication(Private Call) and Conference Communication(Group Call)

BF-TD930(MC-N) incorporates full duplex calling technology to allow both parties to talk at the same time, which greatly facilitates the exchange of crucial information and increases communication efficiency. It's suitable for such scenarios as one-to-one full duplex call(Private Call) with 2 users, and one-to-group conferences call (Group Call) with unlimited user number in same group.


GPS Positioning

With better accuracy and precision, the built-in GPS enables the commander to locate and track his team members. This contributes a lot to personnel management and also promotes command and dispatch work as it equips the commander with clear location awareness.


Personnel Safety

Mandown: If some worker slips or falls, the mandown function will automatically activate and transmit a signal to other radios for help. Built-in Lone Worker and Emergency alarms are also available in case of any accident.

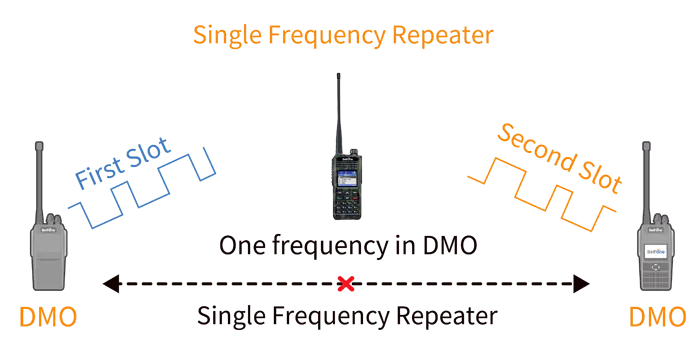

Handheld/SFR Dual Modes

BF-TD930(MC-N) can also function as a single frequency repeater, allocating one timeslot to receive and the other to transmit at the same frequency and using DMO mode to further extend radio coverage. One single device serves two purposes.

BelFone BF-TD930(MC-N): Handheld/SFR Dual Modes

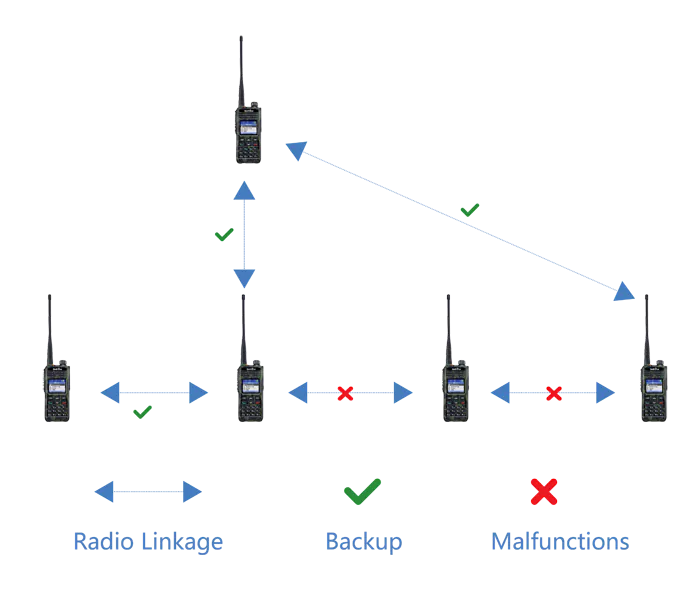

Ad Hoc Networking

Without the aid of repeaters, BF-TD930(MC-N) can speedily establish a portable ad hoc network which is self-adapting and dynamic with as many BF-TD930(MC-N) nodes as may be needed and which supports versatile network topologies. BF-TD930(MC-N) networking is highly flexible as well as reliable.

BelFone BF-TD930(MC-N): Ad Hoc Networking

BelFone BF-TD930(MC-N): Ad Hoc Networking


Automatic Roaming

BF-TD930(MC-N) automatically roams among all sites in the network and always stays connected. This delivers more efficiency and flexibility to your radio communications.


Advanced Encryption with ARC4& AES256

The ARC4& AES256 encryption technology keeps your communications safe and private, optimizing your information safety.


IP68 Protection

IP68 certified BF-TD930(MC-N) is a tough radio designed to brave the challenges of harsh environments. So, environmental factors are one less thing to worry about.



General
Frequency Range
VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channels
1024
Zones
128
Channel Spacing
12.5KHz/ 25KHz
Working Voltage
DC7.4V (±20%)
Frequency Stability
±0.5ppm
Antenna Impedance
50Ω
Battery Capacity
2300mAh (3350mAh optional)
Battery Average Working Time
2300mAh battery: Digital 21 hours, Analog 16 hours; 3350mAh battery: Digital 30 hours, Analog 23 hours
Dimension
56(L)* 33(W)* 129(H) mm
Weight
315g (including battery)
Transmitter
Power Output
High power: 4W/U band; 5W/V band; Low power: 1W
4FSK Modulation
12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
FM Modulation
12.5KHz: 8K50F3E; 25KHz: 16KφF3E
Modulation Limitation
±2.5KHz @ 12.5KHz; ±5KHz @ 25KHz
FM Noise
40dB
Spurious Emission
-36 dBm≤1GHz; -30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3dB
Vocoder
AMBE++
Audio Distortion
≤5%
Receiver
Digital Sensitivity
5% BER: 0.25μV
Analog Sensitivity
0.25uV (12 dB SINAD)
Intermodulation
65dB
Adjacent Channel Selectivity
60dB @ 12.5kHz; 70dB @ 25kHz
Spurious Suppression
70dB
FM Noise
40dB @ 12.5kHz; 45dB @ 25kHz
Frequency Response
+1/-3 dB
Audio Power
0.5W (8Ω load)
Audio Distortion
≤5%
Conduction Radiation
-57dBm
GPS Precision
Horizontal Accuracy ≤10m (with good signal)
TTFF (first location) Cold Boot
<1 minutes (with good signal)
TTFF (first location) Hot Boot
<10 seconds (with good signal)
Environmental Specifications
Operating Temperature
-20℃~+60℃
Storage Temperature
-30℃~+85℃
Water Proof
IP68
Shock & Vibration
MIL-STD-810C/D/E/F
