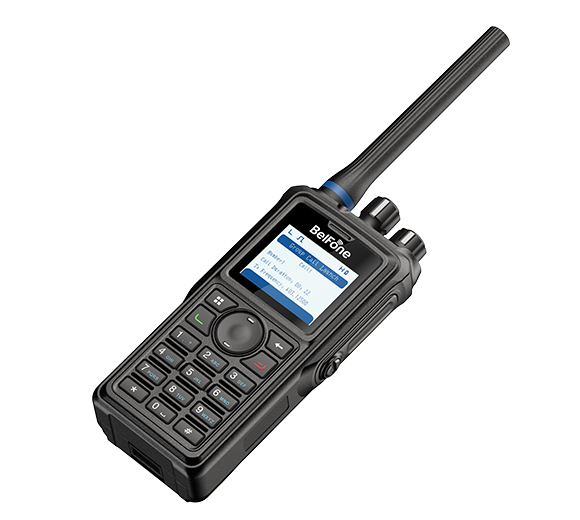

Based on DMR standards, the new generation of digital radio BP660 brings innovations and enhancements in appearance, structure, and performance. It integrates intelligent noise reduction, optimal reception, flexible dispatch, and simple operation, delivering clear audio, wider coverage, fast respond, precise positioning, and enhanced protection, bringing exceptional communication experience.
Brochure
Inquiry
Features & Benefits
Specification
Accessories

AI Noise Reduction

BP660 comes with an in-built high-power speaker and AI noise reduction technology, enabling 360°sound pickup, effectively filtering background noise, and delivering clear audio anytime, anywhere. Incorporates automatic acoustic feedback suppression to suppress short-distance howling, monitor and block feedback loop in real-time, and provide seamless voice experience in crowded areas, significantly enhancing voice communication.


Enhanced Anti-Interference

BP660 employs a customized shielding case on its mainboard that isolates interference signals while preventing internal signals from radiating outward and enhancing signal stability. In scenarios such as signal edge areas, wide-range, and long-distance communication, the BP660 optimizes RF performance by reducing front-end link loss and enhancing back-end demodulation capability, improving reception sensitivity, and expanding communication coverage.


Multiple Alarms

BP660 supports multiple alarm modes including one-key alarm, lone worker, and man down to inform dispatch console immediately in emergencies and provide reliable security assurance.


Voice Encryption

BP660 incorporates dynamic, static, AES256, and ARC4 encryption to secure communications and effectively avoid information leakage lead by eavesdropping or interference.


Precise Positioning

BP660 allows location and distance display when both parties enabled satellite positioning, providing accurate orientation and distance information. It incorporates optional satellite positioning for real-time tracking and managing static and moving status, effectively coordinating and managing operational personnel, and improving command and dispatching efficiency.


DMR Narrowband Communication

The BP660 DMR radio delivers excellent communication performance, providing better voice and audio quality in a wider signal range. It enhances system application management for digital communications, allows it to access BelFone SDC and SVT system and carry out command and dispatch, intelligent management, and dynamic channel allocation.


Rich Applications

BP660 supports an optional Bluetooth 5.0 modular that allows to access wireless audio device, wireless PTT device, offering extensible interface options. Besides that, it also allows an optional 250 hours recording to sustain long time communication.

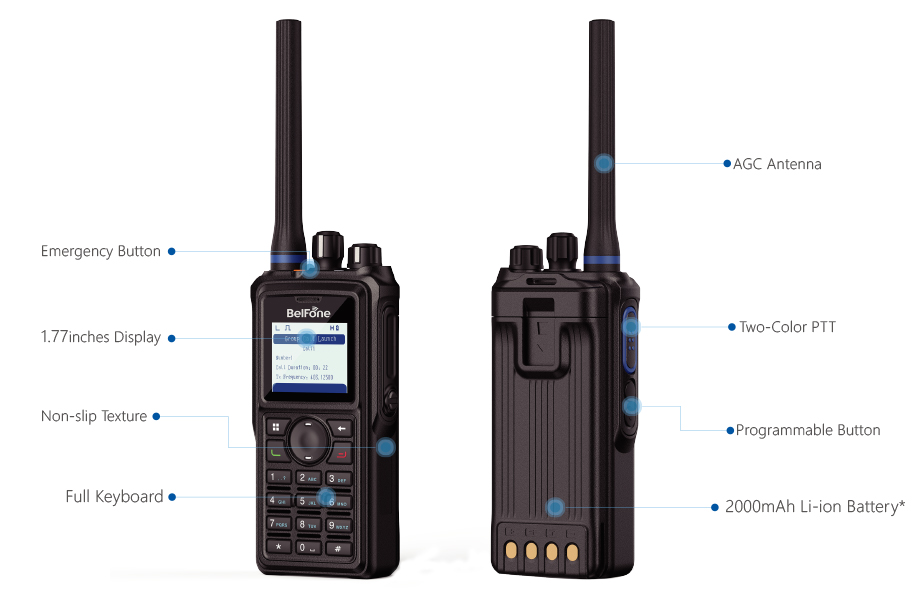

Excellent Design

The 1.77-inch screen comes with the user-friendly interface, brings more intuitive information display and provides convenience for simple operation. Rated IP68 protection, this radio is rugged and durable with great impact resistant and enhanced anti-oxidation capacity to endure various harsh environments.




General
Frequency Range(Optional)
VHF:136-174MHz; UHF:400-480MHz; UHF2:450-520MHz; UHF3:350-400MHz
Channel Capacity
1024
Zones
64
Channel Spacing
25 KHz/12.5KHz
Working Voltage
DC 7.4V (±20%)
Battery Capacity
Standard 2000 mAh
Battery Average Working Time(5/5/90)
Digital 22 hours
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Dimension
60(L)* 38(W)* 125(H)mm
Screen
1.77 inches
Weight
316g(battery include)
Recording(Optional)
250 Hours
Bluetooth(Optional)
BT5.0
Transmitter
Output Power
<5W
4FSK Modulation
12.5kHz(data only):7K60FXD; 12.5kHz(data and voice):7K60FXE
FM Modulation
12.5 kHz:8K50F3E; 25 kHz:16K0F3E;
Modulation Limitation
±2.5kHz@12.5kHz ±5.0kHz@25kHz
FM Noise
-40dB
Conducted Emission
36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3 dB
Audio Distortion
0.03
Digital Voice Codec
AMBE++
Receiver
Digital Sensitivity
5% BER:0.25 uV
Intermodulation
60dB
Adjacent Channel Selectivity
60dB
Spurious Suppression
60dB
FM Noise
-40dB
Frequency Response
+1/-3 dB
Rated Audio Output Power
1.0W
Max Audio Output Power
1.5W
Rated Audio Distortion
0.03
Conducted Radiation
-57dBm
Positioning Precise
<2.5m(CEP50, with good signal)
TTFF(First Location)Cold Boot
< 30 Seconds(with good signal)
TTFF(First Location) Hot Boot
<1 Second(with good signal)
Environmental Specifications
Operation Temperature
-20℃—+60℃
Storage Temperature
-30℃—+85℃
Moisture ProofMIL
-STD-810G
Vibration& ShockMIL
-STD-810G
Waterproof& Dustproof
IP68
