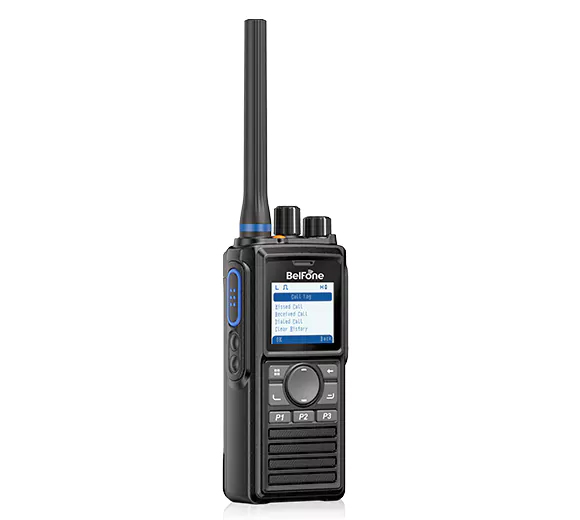

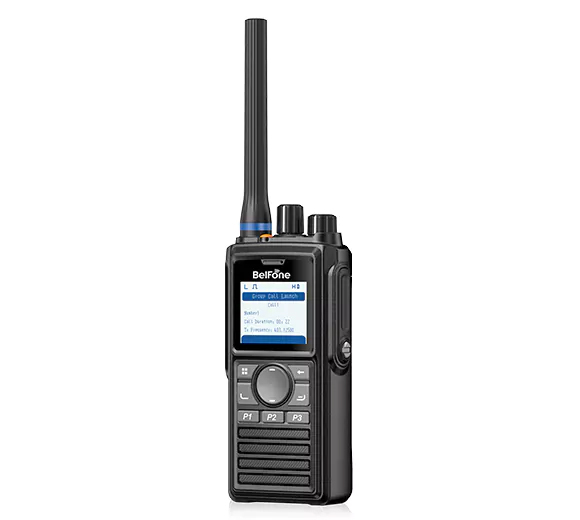

Professional DMR Radio

BF-BP620

The BP620 is a professional DMR radio designed for clear and secure communication in challenging environments. Featuring AI noise reduction, multiple encryption methods (AES256, ARC4), and IP68 certification, it ensures reliable performance in harsh conditions. Optional Bluetooth 5.0 and 250-hour recording enhance versatility, while satellite positioning and advanced alarm modes prioritize user safety.
Brochure
Inquiry
Features & Benefits
Specification
Accessories

AI Noise Reduction

Equipped with a high-performance speaker and advanced AI noise reduction, the BP610 filters background noise and eliminates feedback. It accurately captures human voice, ensuring clear and loud communication even in noisy environments.


Comprehensive Encryption

The BP610 ensures secure communication with multiple encryption methods, including dynamic and static encryption, AES256, and ARC4. These features enhance privacy and protect sensitive information effectively.


IP68 Rugged Protection

With IP68 certification and a durable PC protective material, the BP610 resists rain, dust, and water immersion. Its reinforced screen withstands 1.5-meter drops at various angles, ensuring reliable performance in harsh conditions.


Versatile Applications

The BP610 supports optional Bluetooth 5.0 for wireless audio and PTT devices, offering flexible accessory integration. It also includes an optional 250-hour recording feature, enabling extended communication sessions.


Satellite Positioning

Featuring GPS, Galileo, and GLONASS support, the BP610 enables real-time location tracking during calls. It enhances personnel coordination and improves efficiency in command and dispatch operations.

*Customizable:GPS、GALILEO 、GLONASS


Advanced Alarm Features

The BP610 includes multiple alarm options such as one-key alarm, lone worker, and man down alerts. In emergencies, it automatically notifies command centers to ensure personnel safety and minimize risks.


Optimized Communication Performance

With TDMA dual-slot technology, the BP610 delivers superior audio quality and increased voice capacity over wider signal ranges. It integrates seamlessly with BelFone's SDC and SVT systems for intelligent command, channel management, and dispatch services.


Enhanced RF Optimization

The BP610 features an integrated metal shield to minimize interference and improve audio clarity. Its optimized circuitry ensures reliable signal transmission and reception in challenging environments like high-rise buildings, large areas, and long distances.



General
Frequency Range(Optional)
VHF:136-174 MHz; UHF3:350-400 MHz; UHF:400-480 MHz
Channel Capacity
1024
Zones
64
Channel Spacing
12.5KHz/25KHz
Working Voltage
DC 7.4V (±20%)
Battery Capacity
2000 mAh
Battery Average Working Time
Digital 22 hours
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Demension
57(L)*33 (W) *126 (H)mm
Screen
1.77Inch
Weightabout
300g (Including Battery)
Recording (Optional)
250 hours
Bluetooth (Optional)
BT 5.0
Transmitter
Output Power
≤5W
4FSK Modulation
12.5kHz(date only):7K60FXD; 12.5kHz(data and voice):7K60FXD
FM Modulation
12.5 kHz:8K50F3E; 25 kHz:16KФF3E;
Modulation Limitation
+/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz
FM Noise
-40dB
Conducted Emission
-36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3 dB
Audio Distortion
0.03
Digital Voice Codec
AMBE++
Receiver
Digital Sensitivity
0.25 uV(5% BER)
Intermodulation
60dB
Adjacent Channel Selectivity
60dB
Spurious Suppression
60dB
FM Noise
-40dB
Frequency Response
+1/-3 dB
Rated Audio Output Power
1.0W
Max Audio Output Power
1.5W
Rated Audio Distortion
0.03
Conducted Radiation
-57dBm
Environmental Specifications
Operation Temperature
-20℃—+60℃
Storage Temperature
-30℃—+85℃
Waterproof& Dustproof
IP68
Positioning
Positioning Precise
<2.5m(CEP50, with good signal)
TTFF(First Location)Cold Boot
< 30 Seconds(with good signal)
TTFF(First Location) Hot Boot
<1Second(with good signal)
