COMMERCIAL HYBRID RADIO

BF-TP800

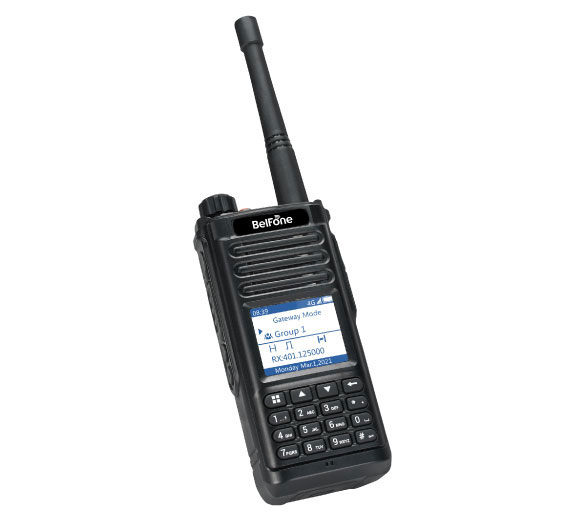

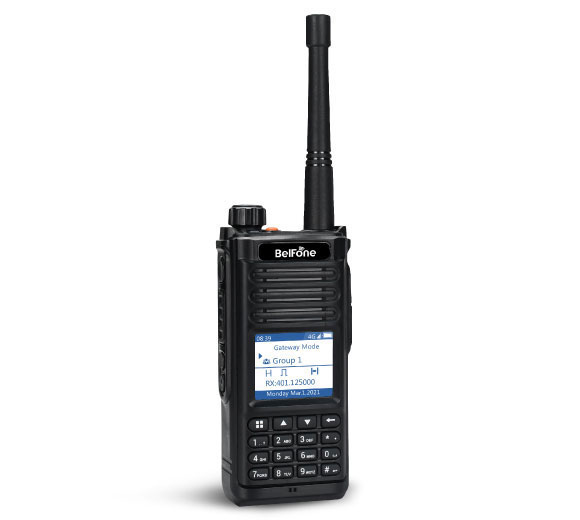

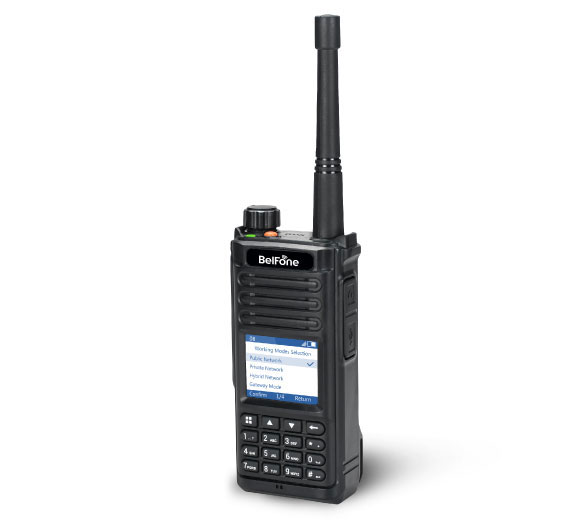

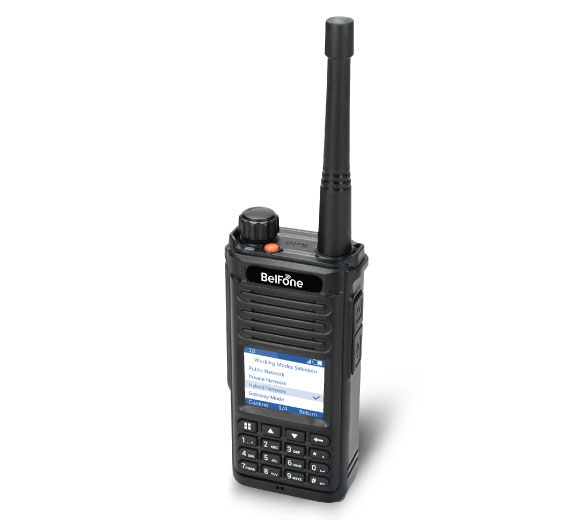

TP800 is a new advanced multi-mode radio which integrates public broadband and narrowband PMR technology to provide critical voice and data services. It brings flexible useability of public network, private network, mixed network and gateway mode, and performance advancements like split-screen, dual PTT, GPS, recording, Bluetooth, etc., to be convenient and benefit for every aspect of radio experience. Designed to meet diversified requirements, it ensures mission-critical reliability, accelerates workflows, and keeps responders safe and effective.
Brochure
Inquiry
Features & Benefits
Specification
Accessories

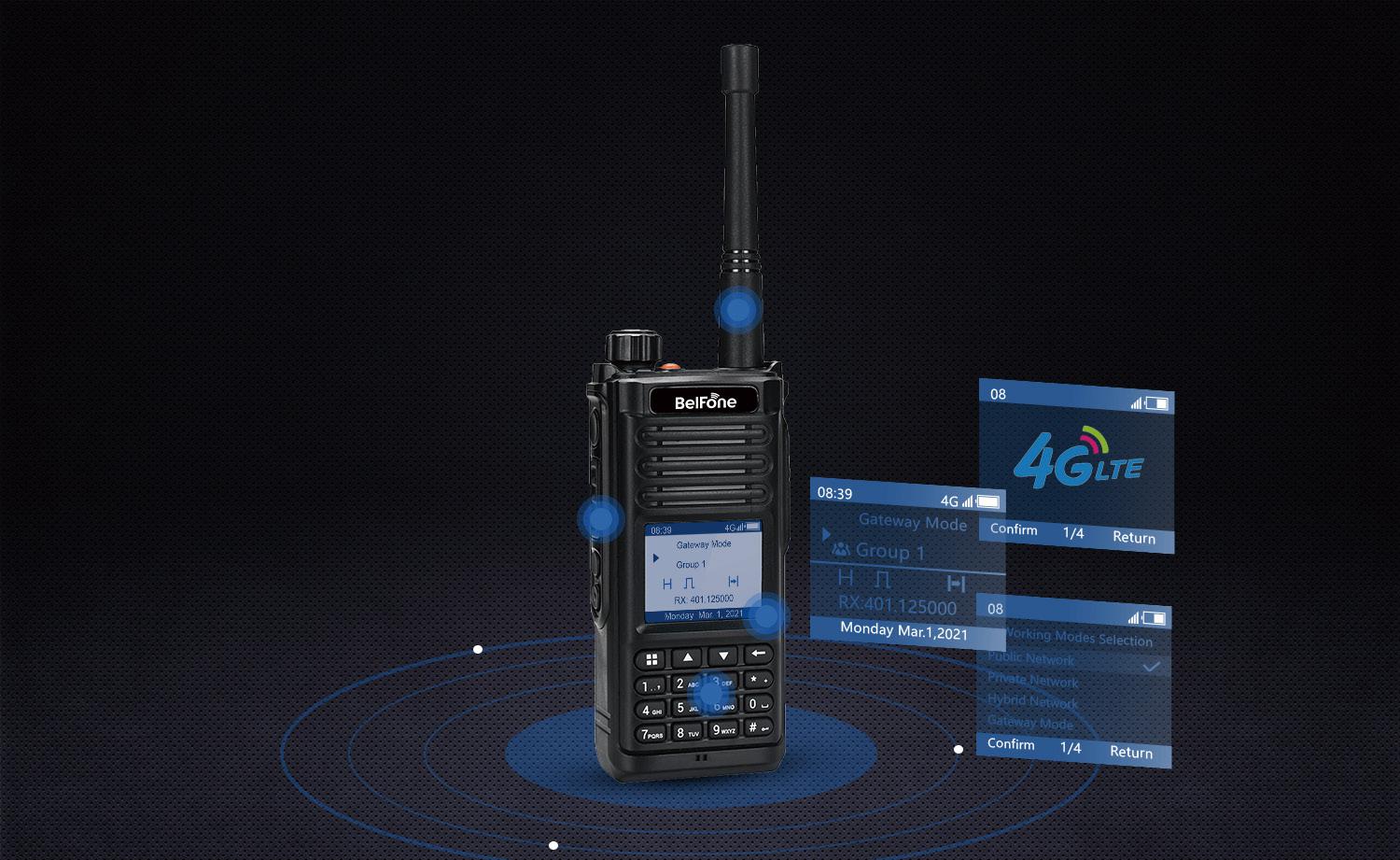

Multi-mode Hybrid,FIexibIe Communications
Multi-mode Hybrid,FIexibIe Communications
A multi-mode radio works in DMR, analog, and PoC (public 4G/3G/2G) mode, which could always be in connect, to communicate whenever and wherever.
Intelligent Gateway Mode
Intelligent Gateway Mode
This smart radio provides outstanding connectivity of PMR(DMR OR analog)and PoC, brings all the advantages of narrowband and broadband technologies, bridging the voice communication over different networks.
Intuitive Multi-Active Split-screen
Intuitive Multi-Active Split-screen
Designed with a full keypad, 1.77 transflective LCD, it offers you the choice of narrowband and broadband display up and down.
5000Ah Extended Battery Life
5000Ah Extended Battery Life
It comes with a 14-hour smart lithium battery and built-in PTC protection to take your communication even further.

Support4G/3G/2G, national limitless communication


WEB-based public network dispatchto provide multi-functions like private/group call, GPS, query,RFID,data,messages,etc.


Dual PTT of PMR and PoC to call at ease and high efficiency.


Flexible Multi-Optional Functions

GPS positioning

Bluetooth

Recording

Low battery voice alert


Analog DMR PoC Hybrid Radio BF-TP800


General
Frequency Range
VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channels
100
Channel Spacing
12.5KHz/ 25KHz
Working Voltage
DC 3.7V
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Battery Capacity
5000 mAh
Battery Average Working Time 5/5/90
Public Network: 14hours; PMR Network: 11 hours
Dimension(H*W*D)
123* 60* 30mm (nExcluding antenna)
Weight
300g (Excluding battery)
Network Standards
LTE-FDD: B1/B3/B5/B8; LTE-TDD: B38/B39/B40/B41;WCDMA: B1/B8 TD-SCDMA: B34/B39
Transmitter (DMR Part)
Output Power
High power: 4.0 ±0.2W; Low power: 1.0 ±0.2W
4FSK Modulation
12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
Modulation Limitation
±2.5KHz @ 12.5KHz; ±5KHz @ 25KHz
Spurious Emission
-36 dBm 1GHz/ -30 dBm 1GHz
Adjacent Channel Power
≤-60dB
Adio Response
+1/-3dB
Audio Distortion
0.03
Receiver (DMR Part)
Digital Sensitivity
5% BER: 0.25 V
Analog Sensitivity
0.22uV (12 dB SINAD)
Intermodulation
60dB
Adjacent Channel Selectivity
50dB
Spurious Suppression
ETSI/TIA603: 55dB
FM Noise
40dB @ 12.5kHz; 45dB @ 25kHz
Frequency Response
+1/-3 dB
Audio Power
1.5W
Audio Distortion
≤5%
Conduction Radiation
3%(typical)
GPS Precision
Horizontal Accuracy 10m (with good signal)
Environmental Specifications
Operating Temperature
-20 ~+65℃
Storage Temperature
-30 ~+85℃
Water Proof
IP54
Shock & Vibration
MIL-STD-810C/D/E/F
Standard Accessories
