BF-TD516LF
BF-TD516LF

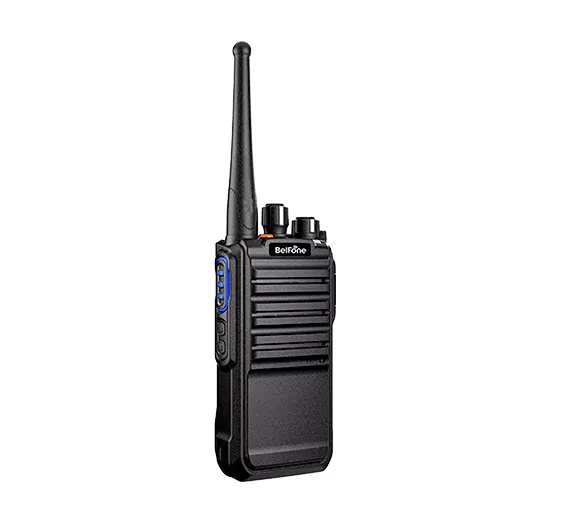

License Free Portable Radio

BF-TD516LF

BF-TD516LF is an entry-level DMR portable radio designed for customers who want to enjoy radio communications without having to apply for frequency licenses. With loud and crystal-clear audio, longer battery life, and of course a higher spectrum efficiency delivered at a 12.5KHz channel spacing, BF-TD516LF provides you with a whole package of basic digital features and wonderful user experience.
Brochure
Inquiry
Features & Benefits
Specification
Accessories
License Free to Save Cost
License Free to Save Cost
Utilizing unlicensed spectrum is a great benefit for users to save cost of frequency and to enjoy digital communication efficiency at same time.
Migrate from Analog to Digital Effortlessly
Migrate from Analog to Digital Effortlessly
It operates in both digital and analog modes so that the existing analog system keeps running while being ready for migration to digital.
Slim, Discreet and Ergonomic
Slim, Discreet and Ergonomic
Small-size and light-weight, it fits easily in your hands. You can move freely and comfortably without feeling a burden. Sleek and compact, it blends well with the business attire.

General
Frequency Range
UHF: 446.0-446.2MHz
Channels
64
Zones
4
Channel Spacing
12.5KHz
Working Voltage
DC7.4V (±20%)
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Battery Capacity
Real 1800mAh
Battery Average Working Time(5/5/90)
Digital 18 hours; Analog 14 hours
Dimension
35(L)* 59.7(W)* 114(H) mm
Weight
259g (including battery pack)
Transmitter
Power Output
High power: 5W; Low power: 1W
4FSK Modulation
12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
FM Modulation
12.5KHz: 8K50F3E/ 25KHz: 16KφF3E
Modulation Limitation
+/- 2.5KHz @ 12.5KHz; +/- 5KHz @ 25KHz
FM Noise
-40dB
Spurious Emission
-36 dBm≤1GHz; -30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3dB
Vocoder
AMBE+2™
Audio Distortion
≤3%
Receiver
Digital Sensitivity
5% BER: 0.25 uV
Analog Sensitivity
0.25 uV (12 dB SINAD)
Intermodulation
60dB
Adjacent Channel Selectivity
60dB
Spurious Suppression
60dB
FM Noise
-40dB
Frequency Response
+1/-3 dB
Audio Power
1.5W
Audio Distortion
3% (typical)
Conduction Radiation
-57dBm
Environmental Specifications
Operating Temperature
-20℃~+60℃
Storage Temperature
-30℃~+85℃
Water Proof
IP54
Shock & Vibration
MIL-STD-810C/D/E/F
