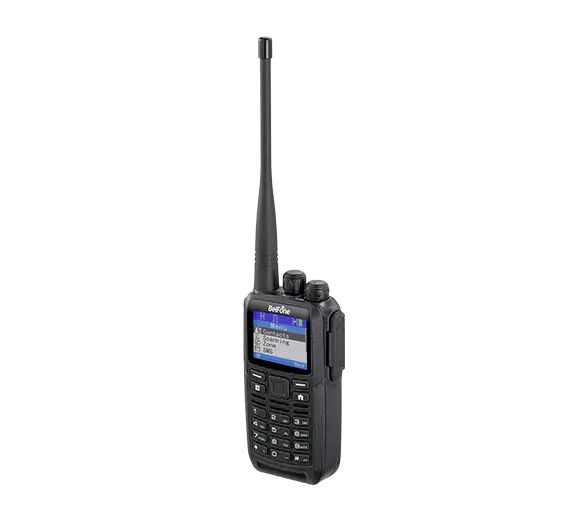

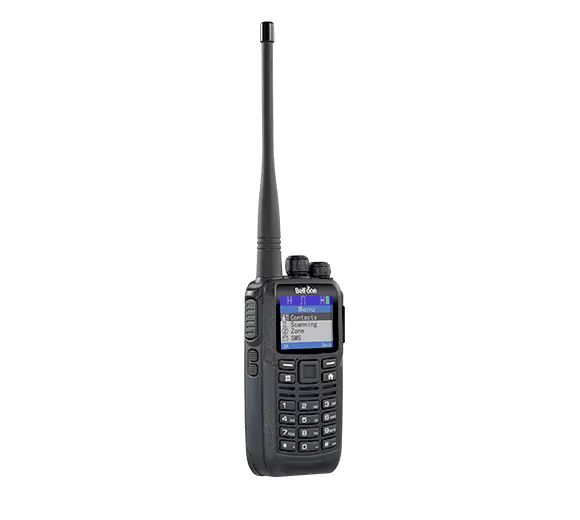

Pseudo Trunk DMR Commercial Radio

BF-TD505

BF-TD505 is a smart DMR migration radio designed for business users, such as hotels, restaurants, supermarkets, construc- tion sites, etc. Besides all the conventional analog features, our dual-mode radio brings you a whole new set of digital expe- riences, such as two timeslots, versatile calls, remote kill/retrieve, and clear digital audio. BF-TD505 is cost-effective and feature-rich.
Brochure
Inquiry
Features & Benefits
Specification
Accessories
Slim, Discreet and Ergonomic
Slim, Discreet and Ergonomic
Small-size and light-weight, it fits easily in your hands. You can move freely and comfortably without feeling a burden. Sleek and compact, it blends well with the business attire.
Enhanced Noise Cancellation
Enhanced Noise Cancellation
Incorporates advanced audio processing technology AMBE + 2™ and FEC to effectively suppress background noise and enhance audio quality, delivering a loud and clear audio.
Cost-effective & Powerful Radios
Cost-effective & Powerful Radios
Migrate from analog to digital with features of twice channel capacity, wider radio coverage and superior audio at affordable cost.





Small Size and Light Weight

Small enough to be held comfortably in your hand and light enough not to be a burden.


Manual Channel Editing

You can add/delete/edit channels on your radios without having to connect to a PC.


Radio Priority-Based Interruption

A radio with higher priority can interrupt communications between radios with lower priorities, either to transmit or to clear a channel for more important communications. This brings better dispatching efficiency to the team.


A Long Battery

BF-TD505 can function for longer than any conventional analog radios (digital 18 hours, analog 14 hours).


Excellent Audio Quality

Excellent digital audio quality comes from the AMBE+2m vocoder and FEC technology


Remote Kill/Revive

Such functions enable you to kill or revive a radio over the air, This greatly facilitates dispatching work and can be especially useful should a radio happen to be lost. You can easily remote kill the lost radio and confidential information can be kept from leaking out.


Private Call,Group Call and All Call

The versatile calling functions bring more efficiency to your teamwork.


Automatic Roaming(Programmable)

In an IP multi-site network, this feature enables BF-TD505 to automatically roam among all sites and stay connected, delivering more flexibility and efficiency.

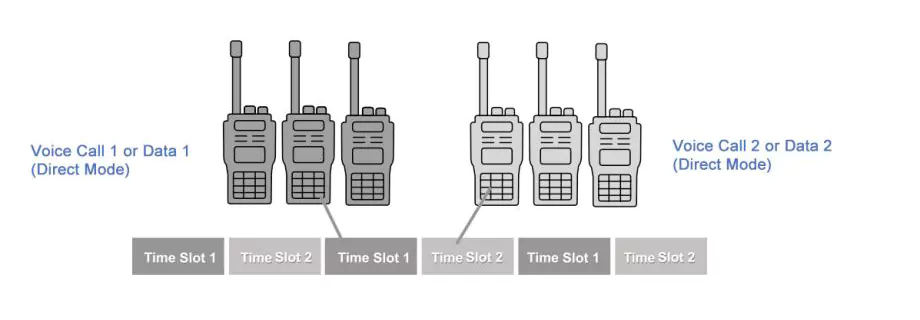

DMO Pseudo Trunk

The user can choose slot 1 or slot 2 for communications, When one slot is occupied the radio will automatically switch into the free slot. Frequency efficiency is greatly increased.

Highlight of BelFone BF-TD505: DMO Pseudo Trunk

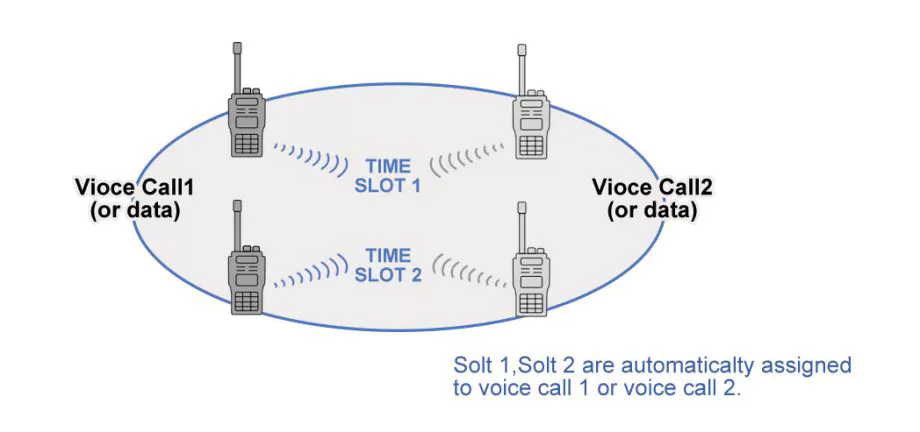

DMO True 2-Slot

In direct mode this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths at one frequency with no extra costs or frequency license.

Highlight of BelFone BF-TD505: DMO True 2-Slot

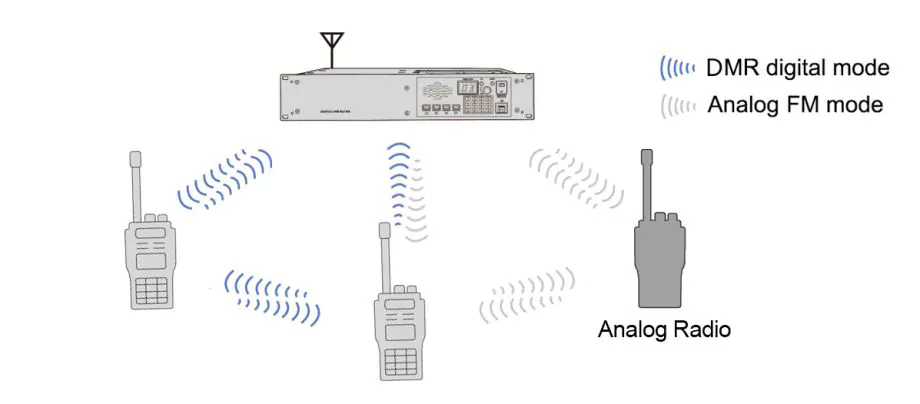

Digital/Analog Dual Modes

Receive both analog and digital signals on a single channel and can automatically switch into the needed mode for efficient communications.

Highlight of BelFone BF-TD505: Digital/Analog Dual Modes



General
Frequency Range
VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channels
160
Zones
32
Channel Spacing
12.5KHz/ 25KHz
Working Voltage
DC7.4V (±20%)
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Battery Capacity
1800mAh
Battery Average Working Time
Digital 20 hours; Analog 14 hours
Dimension
56(L)* 32(W)* 109(H) mm
Weight
239g (including battery)
Transmitter
Power Output
High power: 5W; Low power: 1W
4FSK Modulation
12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
FM Modulation
12.5KHz: 8K50F3E/ 25KHz: 16KφF3E
Modulation Limitation
+/- 2.5KHz @ 12.5KHz; +/- 5KHz @ 25KHz
FM Noise
-40dB
Spurious Emission
-36 dBm≤1GHz; -30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3dB
Vocoder
AMBE 3000
Audio Distortion
≤3%
Receiver
Digital Sensitivity
5% BER: 0.25 uV
Analog Sensitivity
0.25 uV (12 dB SINAD)
Intermodulation
60dB
Adjacent Channel Selectivity
60dB
Spurious Suppression
60dB
FM Noise
-40dB
Frequency Response
+1/-3 dB
Audio Power
1.5W
Audio Distortion
3% (typical)
Conduction Radiation
-57dBm
Environmental Specifications
Operating Temperature
-20℃~+60℃
Storage Temperature
-30℃~+85℃
Water Proof
IP54
Shock & Vibration
MIL-STD-810C/D/E/F
