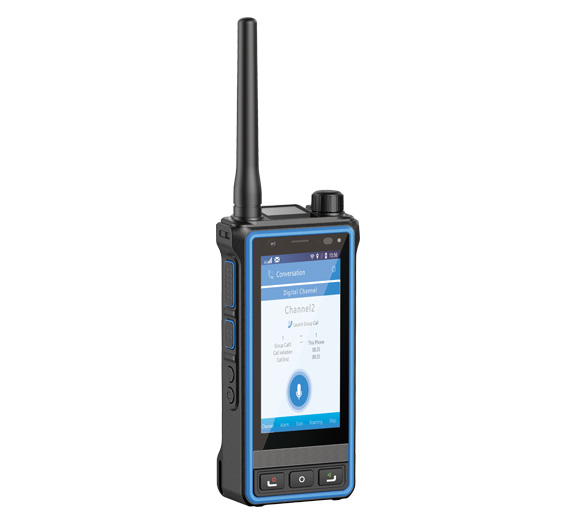

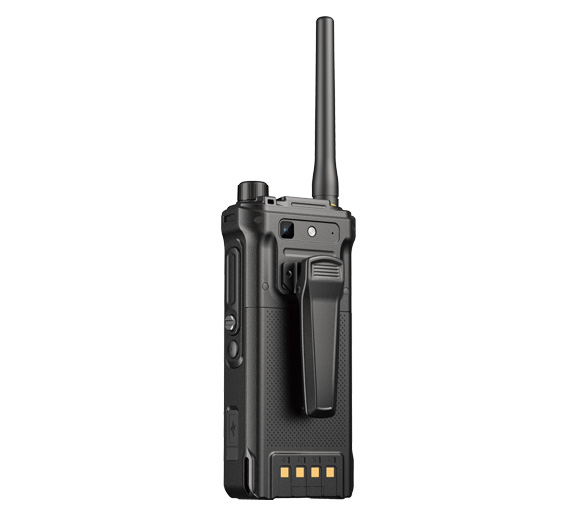

Advanced Broadband & Narrowband Multimode Radio

BF-SCP860

The BF-SCP860 is a versatile multimode radio that integrates both broadband and narrowband communications with smartphone capabilities. It supports conventional communication, DMR trunking, and Push-to-Talk over Cellular (PoC), ensuring reliable voice communication for critical operations.
Brochure
Inquiry
Features & Benefits
Specification
Accessories

Dual Screen Display
The BF-SCP860 boasts an innovative dual-screen design with a 4.0-inch 1080P display, offering sharp and intuitive visuals even under strong light. Its glove-friendly and wet-hand operation ensures seamless usability, making it ideal for outdoor tasks.

Seamless Broadband and Narrowband Integration
Featuring automatic switching between public and private networks, the BF-SCP860 connects with DMR, Analog, and other narrowband terminals in private mode. In public mode, it leverages the BelFone ProChat IoT system for limitless audio and video communication, extending coverage and enabling quick network deployment.

Enhanced Trunking Communication
The BF-SCP860 supports advanced trunking capabilities with wide compatibility across systems and terminals, delivering dependable critical communication for industries like transportation, utilities, and emergency services in disconnected areas.

Dual Transmission
With dual PTT buttons, the BF-SCP860 lets users prioritize public or private network communication effortlessly. Its 5W transmission power and advanced audio processing enhance sound quality and expand private network coverage for uninterrupted communication.

Comprehensive Positioning
The BF-SCP860 supports GPS, GLONASS, Galileo, cellular-based positioning, and WiFi-assisted tracking, meeting location requirements in diverse settings such as outdoors, indoors, tunnels, and underground environments.
Note: Default GPS configuration is factory-set.


Dual HD Cameras
Equipped with 13MP rear and 8MP front cameras, the BF-SCP860 captures crisp 1080P images to document critical moments. Its VoLTE capability enables high-definition audio and video calls, ensuring seamless multimedia integration.

Rugged Durability
Built with industrial-grade materials and certified to IP68 standards, the BF-SCP860 withstands drops from 1.5 meters and operates reliably in temperatures from -30ºC to 60ºC. It remains functional in harsh environments, including rain, snow, heat, and high humidity.

Versatile Application Support
Powered by Android 11, the BF-SCP860 ensures enhanced security, stability, and compatibility. It supports third-party applications, expanding capabilities for data, video, and IoT smart solutions, meeting diverse communication needs, and streamlining business operations.


Private Network
Frequency Range
VHF:136-174MHZ; UHF:400-470MHZ/UHF:350-400MHZ
Channel Spacing
12.5KHz/25KHZ
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Output PowerH
<5W L:1 W
4FSK ModulationOnly data
7K60FXD,Voice and data: 7K60FXE
FM Modulation12.5 KHZ
8K50F3E;25 KHz:16KФF3E;
Modulation Limitation
+/-2.5kHz @ 12.5kHz;+/- 5kHz @ 25kHz
FM Emission Noise
-40dB
Spurious Emission
-36dBm<1GHz/-30dBm≥1GHZ
Adjacent Channel Power
<-60dB
Frequency Response
+1/-3 dB
Emission Audio distortion
0.03
Digital vocoder
AMBE+2™/SELP
Digital Sensitivity
5% BER: 0.25 uV
Analog Sensitivity
0.28 uV(12 dB SINAD)
Intermodulation
65dB
Adjacent Channel Selection
60dB
Spurious Suppression
70dB
FM Noise
40dB
Receiving Response
+1/-3dB
Receiving Audio Distortion
0.03
Conducted Radiation
-57dBm
General
Public Network Frequency Band
3G:WCDMAB1//5/8;+CDMA20001X/EVDOBCO; 4G:FDD-LTEB1/3/5/8; TDD-LTE B38/39/40/41
Display
4.0”,1080*540dpi, supports glove operation
CameraFront
8MP/Rear:13MP
Storage
4GB+64GB
TF Card
Supports up to 256G expansion
Bluetooth
BT4.2, supports BLE
Charging Mode
Type-C Desktop charge
Positioning
BDS, GPS, GLONASS, Galileo
WLAN
802.1l b/g/n/ac/2.4GHZ,5GHZ5G
Sensor
Earth inductor/compass, gyroscope, proximity sensor, opto-sensor
Working Voltage
7.6V
Battery Capacity
Standard: 2400mAh(Thin Battery); Optional: 3500(Thick Battery)
Operating System
Android11
Language
English
Dimensions
155.6(H)x69.8(W)x26.5(D)mm(Antenna not included)
Environmental
Working Temperature
-20℃—+60℃
Storage Temperature
-30℃—+70℃
Shock & Vibration
MIL-STD-810C/D/E/F
Protection Grade
IP68
