BF-TD515

Commercial Portable Radio

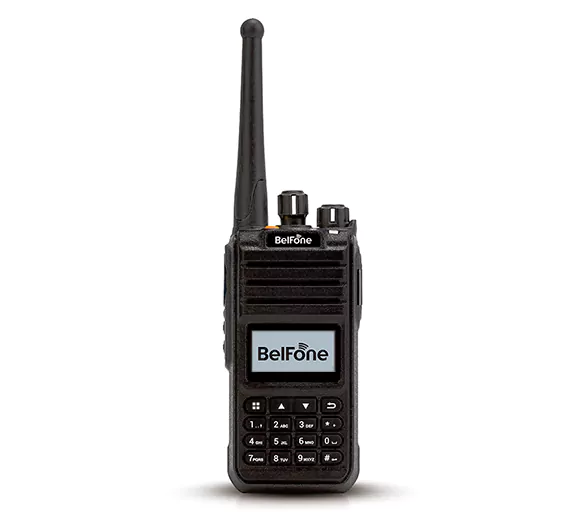

BF-TD515

BF-TD515 is a cost-effective entry-level DMR two-way radio with outstanding performance to facilitate a smooth transition from analog to digital. It delivers loud and clear audio, long battery life to power you through the day, and a huge channel capacity together with adjustable power to meet all kinds of communication needs. If you want to buy a digital radio with a budget for analog radios, it will be your ideal choice.
Brochure
Inquiry
Features & Benefits
Specification
Accessories
Migrate from Analog to Digital Effortlessly
Migrate from Analog to Digital Effortlessly
It operates in both digital and analog modes so that the existing analog system keeps running while being ready for migration to digital.
Maximized Efficiency
Maximized Efficiency
TDMA two timeslots save frequency license for smaller organizations, which is able to leverage quick and easy connectivity brought by this digital radio.
Cost-effective & Powerful Radios
Cost-effective & Powerful Radios
Migrate from analog to digital with features of twice channel capacity, wider radio coverage and superior audio at affordable cost.


Digital/Analog Dual Modes

BF-TD515 gives you a smooth transition from the analog world to the digital.


A Longer Battery Life

BF-TD515 can function for longer than any conventional analog radios, meeting the battery needs of a long-day operation.


Small Size and Light Weight

BF-TD515 is small and light enough to be held easily and comfortably in a single hand. It is also very easy to operate.


Excellent Audio Quality

The FEC technology and AMBE3000 vocoder deliver a clear and crisp audio.


Private Call, Group Call And All Call

The versatile calling functions bring more efficiency to your teamwork.


Scan/ Monitor

At a convenient push of a button you can monitor all the conversations on your channel or you can scan conversations on different channels.


Compatible with Motorola Audio Accessories

BF-TD515 is compatible with Motorola audio accessories.So,if you already have a Motorola analog earpiece or microphone,you can pair them with BelFone BF-TD515 and go hand-free.


TDMA 2-Slot

In repeater mode this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths at 1 frequency with no extra costs or frequency license.


Digital/Analog Mixed Mode

Receive both analog and digital signals on a single channel and can automatically switch into the needed mode for efficient communications.



General
Frequency Range
VHF: 136-174MHz; UHF: 350-390 MHz/400-480 MHz/ 450-520MHz
Channels
1024
Zones
64
Channel Spacing
12.5KHz/25KHz
Working Voltage
DC7.4V (±20%)
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Battery Capacity
Real 1800mAh
Battery Average Working Time
Digital 18 hours; Analog 13 hours
Dimension
129(L)* 60(W)* 36(H) mm
Weight
283g (including battery pack)
Transmitter
Power Output
High power: 5W; Middle power: 3W; Low power: 1W
4FSK Modulation
12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
FM Modulation
12.5KHz: 8K50FXD; 25KHz: 16KΦF3E
Modulation Limitation
+/- 2.5KHz @ 12.5KHz; +/- 5KHz @ 25KHz
FM Noise
-40dB
Spurious Emission
-36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3dB
Vocoder
AMBE+2™
Audio Distortion
<3%
Receiver
Digital Sensitivity
5% BER: 0.25 uV
Analog Sensitivity
0.25 uV (12 dB SINAD)
Intermodulation
65dB
Adjacent Channel Selectivity
60dB
Spurious Suppression
70dB
FM Noise
-40dB
Frequency Response
+1/-3 dB
Audio Power
500mW
Audio Distortion
3% (typical)
Conduction Radiation
-57 dBm
Environmental Specifications
Operating Temperature
-20℃~+60℃
Storage Temperature
-30℃~+85℃
Water Proof
IP56
Shock & Vibration
MIL-STD-810C/D/E/F
