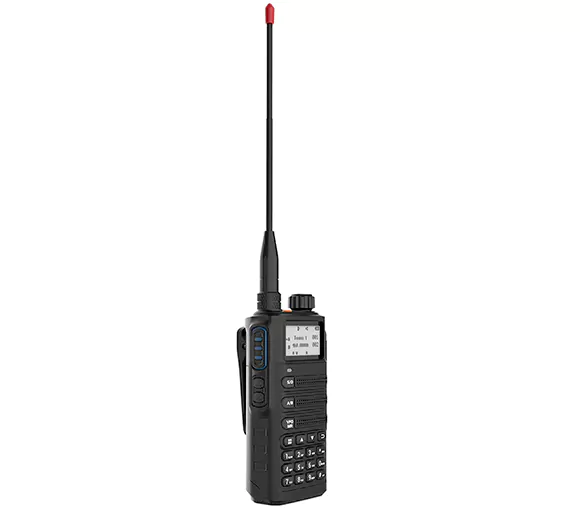

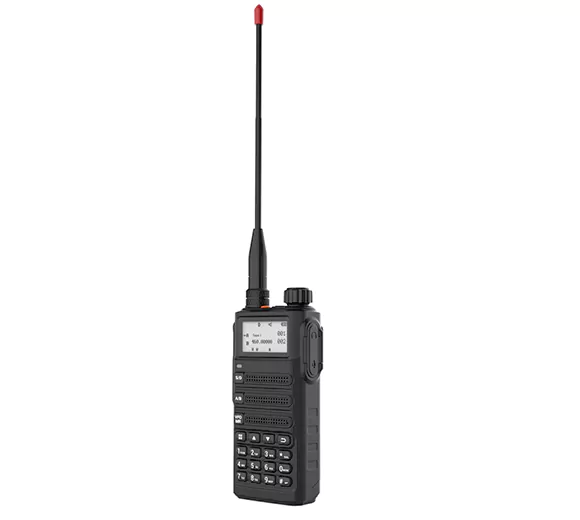

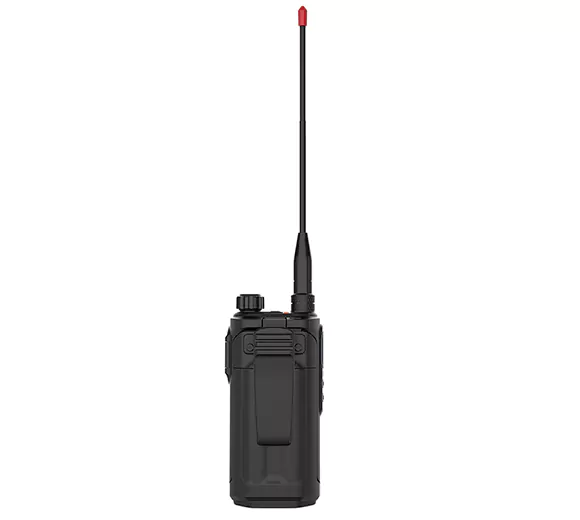

UV Dual Band Analog Two-way Radio

BF-SC500UV

BF-SC500UV is a cost-effective PMR radio capable of providing quality voice communications for amateur users. This tough IP54 radio offers cross-band operation and switchable power, besides such conventional features as Reverse Frequency, Local Alarm, TOT, Scan, and Monitor. It also comes with a built-in torchlight, which contributes to its being an ideal choice for outdoor users.
Brochure
Inquiry
Features & Benefits
Specification
Accessories


* UV Dual Bands

BF-SC500UV is capable of cross-band operation. When not transmitting, it can receive both VHF signals and UHF signals, although not simultaneously. The users can keep two talk groups at the same time, delivering more convenience.



* Switchable Powers

The user can switch transmitting power (H:5W/ M:3W/ L:1W) according to his specific communication needs, which makes BF-SC500UV way more flexible and convenient than most.



* VOX

With a paired microphone, the user can active the transmitting function through voice only and no longer needs to press the PTT button.



* Torchlight

The built-in torchlight drives darkness away when the user is operating in a dark environment. BF-SC500UV brings more light into your work and life.



* Wide/Narrow Bands Switchable

This function enables the user to set your bandwidth (two optional bandwidth, wide bandwidth: (25KHz)narrow bandwidth: (12.5KHz)). Screen display “W” means wide bandwidth& screen display “N” means narrow bandwidth.



* CTCSS/CDCSS and STE

This can effectively prevent interferences from other conversations at the same frequency. Unwanted signals are filtered out.



General
Frequency Range
136-174 MHz、400-480MHz、350-390 MHz (receive only)、87-108 MHz (receive only)
Channel Capacity
16
Channel Spacing
25KHz(width)/12.5KHz(narrow)
Working Temperature
-20℃~+60℃
Antenna Impedance
50Ω
Operating Voltage
DC 7.4V(±20%)
Battery Capacity
2000mAh(Li-ion)
Frequency Stability
±2.5ppm
Dimensions
61(L)×37(W)×132(H)mm
Weight
242g(including battery pack)
Transmitter
Power Output
H: 7W L: 1W
Modulation
16K ¢F3E(width) 8K¢F3E(narrow)
Rated Audio Distortion
0.05
Adjacent Power
≥65 dB(wide)/60 dB(narrow)
Modulation Limitation
≤5KHz(width)/2.5KHz(narrow)
Receiver
Sensitivity
≤-123dB(12dB SINAD)
Adjacent Selectivity
≥60dB(width)/ 55dB(narrow)
Intermodulation Rejection Ratio
≥60dB(width)/ 55dB(narrow)
Spurious Suppression
≥60dB(width)/ 55dB(narrow)
Rated Audio Output Power
500 mW
Rated Audio Distortion
0.05
